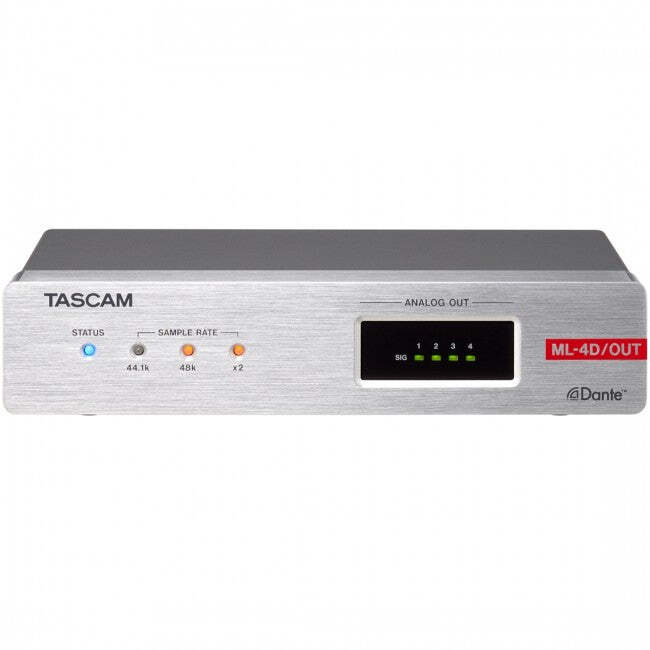

Tascam ML-4D/OUT-E DANTE Compact Processor

Product

Information: The ML-4D/OUT-E is a compact converter

that converts Dante input signals into 4-channel line output

signals. With half the size of a standard 1U rack, the ML-4D/OUT-E

is suitable for different Dante systems as an exquisite analog

output unit. The built-in DSP mixer enables small scale systems to

fully perform with a variety of input/output models the TASCAM Dante

Compact Processor Series offers. ML-4D/OUT-E supports up to

96kHz/24bit and uses Euroblock connectors for analog line output.

4 line output, 4 Dante input/output

The ML-4D/OUT-E not only converts Dante signals into 4-channel line

signals; it can also convert them into 4-channel Dante output

signals, making it possible to direct these to a Dante established

network using the built-in DSP matrix mixer.

Half-rack size Dante Compact Processor Series

The Dante Compact Processor Series has a line-up of models with

different input/output specifications:

MM-4D/IN, 4-channel mic/line input

ML-4D/OUT, 4-channel line output

MM-2D, 2-channel mic/line input/output

AE-4D, AES/EBU 4-channel input/output

For analog input/output models, the branch extends with units

equipped with Euroblock or XLR connectors that users can choose

depending on their usage. By combining multiple different units all

at once, it is possible to match and introduce them into various

systems.

Optimal input/output unit for different Dante systems

The Dante Compact Processor Series provide easy additional mic/line

or AES/EBU input/output to several situations and places such as

public facilities, broadcasting stations, recording studios, etc.

where Dante systems are being used. They are the optimal

input/output unit for small scale environments.

Structuring small scale systems with the DSP function

The Dante Compact Processor Series are equipped with a matrix mixer

that includes a DSP feature with compressors, parametric EQs,

limiter, delay, etc. functions. From the input of microphone signals

to the output of powered speakers; also applicable with

recording/playback systems, the Dante Compact Processor Series can

build up a complete small system on their own.

Flexible routing

Routing to each Dante device is easy via Dante controller.

Input/output units can be added flexibly to new or already

established Dante systems.

Compatible with Dante Domain Manager and AES67 mode

The Dante Compact Processor Series are compatible with Dante Domain

Manager, which features security functions and enables the use of

wide-area networks. This helps the Dante Compact Processor Series

access easily to Dante systems using already established network

infrastructures. With the AES67 mode, connection to AES67 network

systems is also possible.

The advantages of introducing Dante Network Audio

These are some of the benefits provided when adopting Dante Network

Audio:

Reduction of system costs

It is possible to have a maximum transmission of 128ch I/O with one

single CAT5e cable. This leads to fewer cables needed, not to

mention the reduction of costs on wiring and space for cable pits.

Improved connection flexibility

All equipment can be freely connected and routed by applying star

connections.

Built-in 4 in/4 out matrix mixer

Using the built-in matrix mixer, users can mix 4-channel Dante

inputs and configure settings on each of the four output zones. The

matrix mixer is also equipped with a ducking function and an ambient

noise compensator function, which detects the level of environmental

sounds and automatically adjusts the input level of the source.

Input/output routing

Flexible routing allows users to choose the output zone of 4 Dante

inputs or the built-in matrix mixer as 4 line output and/or 4 Dante

output. The ML-4D/OUT-E can be also used a as a simple line output

unit by bypassing the matrix mixer.

10 band EQ and a variety of output effects included

10 band EQ, high pass filter, low pass filter, delay, and limiter

effects included.

They can be finely adjusted depending on the powered speakers, or to

the environment in which the unit is used.

8 band parametric EQ

High pass filter / low shelving EQ

Low pass filter / high shelving EQ

Scene preset and timer event functions

Effect parameters, mix levels, input/output routings, etc. settings

can be saved as up to 50 different presets by the scene preset

function. This function allows switching different presets

seamlessly in different environments. By using the scene preset

function together with the SNTP client included-timer event

function*, it is possible to automatically switch different scenes

at a specified time.

PoE supported

Power supply can be provided to the unit via PoE (Power over

Ethernet).

No need for AC adaptors; power supply construction fees and

installation costs can be reduced by using a PoE compatible network

switch.

Remote control via control software

Controlling effects or the matrix mixer can be easily done through

the dedicated control software; depending on the amount of controls

the user needs, there are two types:

TASCAM DCP CONNECT, designed for system integrators/managers that

handle the configuration and settings of an entire system.

TASCAM EZ CONNECT, designed for end-users and allowing them to use

simple controls.

Compatible with Windows / macOS / Android / iOS devices.

Installable according to usage/environment

Units can be easilly installed directly under desks or on walls with

the included surface mount adaptors.

With the optional rack-mountable shelf AK-RS1, up to two Dante

Compact Processor models can be installed in a 19 inch rack space. Specifications:

4 line output

4 Dante input/output

Supports PoE (Power over Ethernet)

Up to 24bit/96kHz

Includes a variety of DSP functions for optimal use in different

scenes/environments (Output effects, 4 in/4 out matrix mixer)

Supports Dante daisy chain; this allows two Dante Compact Processor models to be

connected without a network switch

Compatible with Dante Domain Manager and Dante AES67 Mode

Flexible scene preset function allows to work in different area situations (Up

to 50 presets)

Timer event function allows to automatically switch scenes at a specified time

(planned to be compatible on a future version update)

2 types of user control software available for Windows/Mac/iOS/Android devices:

For integrators: input/output routing selection, DSP/design/scene settings of

the complete system, etc.

For end-users: simple app design for only the necessary functions such as area

volume settings, etc.

Remote control via GPI and Dante

Half-rack mountable size

Equipped with indicators that show LAN/Dante connection status and sample rate

Equipped with signal indicators that monitor line output signals

Configurable reference level (via remote control only)

Surface rack mountable angles for installation under desks included

Optional accessories:

AC adapter PS-P1220E for redundant power supply available

Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor

models in a 19 inch rack case

General

Formats and channels 44.1/48/88.2/96kHz,16/24-bit, 4 channels

Input/output ratings

DATA/DATA+PoE connectors

Connector RJ-45

Transmission protocol Dante

Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)

Cables category 5e or faster STP cables

ANALOG OUT connectors

Connector Euroblock (balanced) 3.81 mm pitch

Nominal output levels +4 dBu (when Ref. Level not -9 dBFS)

+6 dBu (when Ref. Level set to -9 dBFS)

Maximum output level (switchable)

+15 dBu (Ref. Level: -9 dBFS)

+18 dBu (Ref. Level: -14 dBFS)

+20 dBu (Ref. Level: -16 dBFS)

+22 dBu (Ref. Level: -18 dBFS)

+24 dBu (Ref. Level: -20 dBFS)

Output impedance 200 ? or lower

Control input/output

External control connectors (CONTROL)

Connectors Euroblock 3.81mm pitch

10V/CONTROL/GND connectors Connect variable resistors (10k? recommended)

Other

Power PoE class 0

TASCAM PS-P1220E AC adapter (sold separately)

Power consumption 4W

Dimensions 214 x 44.45 x 136.1 mm (W x H x D, including protrusions)

Weight 863 g

Operating temperature range 0°C-40°C

Included items Installation brackets, Euroblock plugs, Cable band kit, Owner's

manual (including warranty)

Audio performance

DANTE IN ? LINE OUT

Frequency response +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency,

JEITA)

+/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz sampling frequency, JEITA)

Distortion (THD+N) 0.002 %(when -1 dBFS input, 44.1/48/88.2/96kHz

samplingfrequency, JEITA)

S/N ratio 108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)

Crosstalk 100 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)

Dynamic range 108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA)
