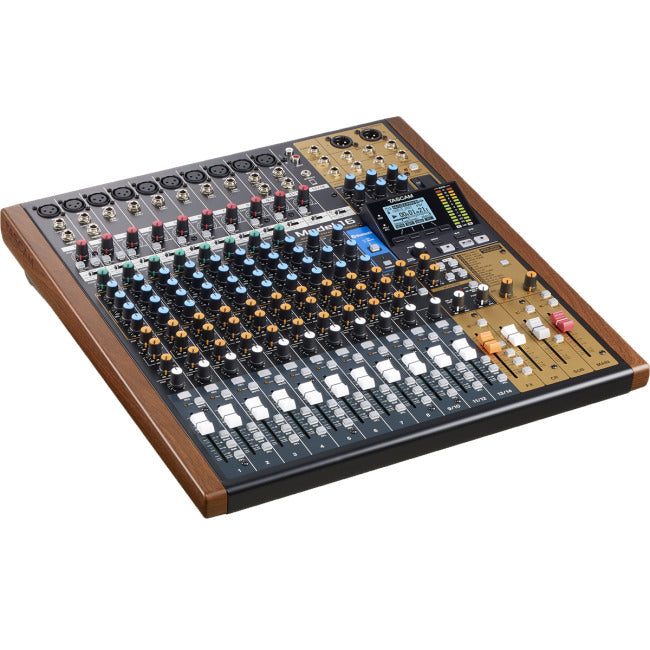

TASCAM Model 16 Hybrid Mixer & Multitrack Recorder

Product Information: An all-in-one analogue mixer, multi-track digital recorder and audio interfaceThe Tascam Model 16 all-in-one mixer brings the flagship Model 24’s powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 16 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless. With the Model 16, your perfect mix has met its match. Features at a glance 14-channel analogue mixing console with built-in 16-channel multi-track recorder and USB audio interface Mixer features 14 analogue inputs 10 Tascam Ultra-HDDA microphone preamps with switchable phantom power (48 V) on eight mono and two stereo channels 12 balanced line inputs (8 mono, 2 stereo) One multi-purpose stereo channel for input from mobile devices via Bluetooth or via RCA connectors or stereo mini-jack connector (CH 13/14) Inserts on input channels 1 and 2 Channels 1 and 2 can be used with high-impedance instruments like electric guitars/basses Three Aux outputs (monitor 1 (pre fader), monitor 2 (pre/post fader), effects (post fader)) Three stereo outputs with independent master faders (Main, Sub, Control Room) One-knob compressor for channels 1–8 Switchable low-cut filter (100 Hz) for eight mono and two stereo channels Switchable Mute, Stereo/Sub routing and PFL on each input channel Three-band equalizer with sweepable mids for eight mono channels, fixed mids on stereo channels Semi-parametric EQ with two sweepable mid bands (wide/narrow) for stereo and sub outputs Built-in Bluetooth receiver for wireless playback On-board effects processor 16 effects types Can be used on all input channels, monitor busses, sub and main stereo bus Can be turned on/off by an optional footswitch (Tascam RC-1F) 60-mm faders on each channel 12-segment LED output level meters XLR balanced outputs for main stereo bus TRS balanced outputs for sub, control room, monitor 1/2 and effects send Headphones output with level control (80 mW per channel) Recorder features Tascam multi-track recording engine Uses SD cards as recording media (up to 128 GB, Class 10 or higher required) Up to 16 tracks (14 input channels + stereo mix) can be recorded without the need for a computer Recording format: WAV (BWF), 44,1/48 kHz, 16/24 Bit Playback format: WAV (BWF) Overdubbing, punch in/out recording (eight channels maximum) Multi-track playback for advanced live performance Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments Audio interface features USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers Transfer to computer: 16 channels (all 14 inputs + stereo mix) Transfer from computer: 14 channels, assignable to each channel input Audio resolution 44.1/48 kHz, 16/24 bit Other features Simple and quick menu operation with multi-jog dial 19-inch rack installation possible (with optional rackmount kit) Internal power supply with removable power cord Supported Operating Systems Windows Windows 10 (May 2019 Update) Windows 8.1 Windows 7 Mac macOS Mojave (10.14) macOS High Sierra (10.13) macOS Sierra? (10.12) Specifications: Recorder Recording media: SD (512 MB – 2 GB)SDHC (4–32 GB)SDXC (64–128 GB)Class 10 or higher requiredFile system: FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)Recording file format: WAV (BWF, maximum file size: 2 GB)Playback formats: WAV (BWF)Sampling frequency: 44.1 kHz, 48 kHzBit depth: 16 bit, 24 bitRecordable channels: 16 channels max. (14 channels + stereo mix) Audio inputs and outputs Microphone inputs (CH 1–8,9,11): XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD)Maximum input level: +10 dBu Nominal input level: –8 dBu Minimum input level: –58 dBu Gain adjustable range: 0–50 dB Input impedance: 1.8 k?LINE inputs (CH 1–8): 6.3-mm TRS phone jack, balanced Maximum input level: +22 dBu Nominal input level: +4 dBu Gain adjustable range: –10 dB to +40 dB (CH 1–8)–20 dB to +30 dB (CH 9, 11) Input impedance: 22 k?INSERT (CH 1–2): 6.3-mm TRS phone jack(Tip: Send, Ring: Return, Sleeve: GND) Nominal input level: 0 dBu Maximum input level: +18 dBu Input impedance: 10 k? Nominal output level: 0 dBu Maximum output level: +18 dBu Output impedance: 100 ?STEREO inputs (CH 13-14): RCA pin jack, unbalanced3.5-mm stereo mini jack, unbalanced Maximum input level: +8 dBV Nominal input level: –10 dBV Input impedance: 10 k?MAIN output: XLR-3-32, balanced(1: GND, 2: HOT, 3:COLD) Maximum output level: +4 dBu Nominal output level: +22 dBu Output impedance: 200 ?SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT: 6.3-mm TRS, balanced(Tip: HOT, Ring: COLD, Sleeve: GND) Nominal output level: –2 dBu Maximum output level: +16 dBu Output impedance: 200 ?PHONES OUT: 6.3-mm stereo phone jack Maximum output power: 80 mW + 80 mW (at 32 ?)Channel EQ Low cut: 100 Hz, –18 dB/Oct. High (shelving): 12 kHz, ±15 dB Mid (peaking): variable 100 Hz to 8 kHz, ±15 dB (Mono)fixed 600 Hz, ±15 dB (Stereo)Q = 0.55 Low (shelving): 80 Hz, ±15 dBMaster EQ High (shelving): 10 kHz, ±15 dB Mid (wide): variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 0.5 Mid (narrow): variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 5Footswitch connector: 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended) Audio performance Residual output noise: –100 dBu(MAIN OUT, MAIN fader at min.)Equivalent input noise (EIN): –128 dBu(Mono input channel at 150 ?, GAIN at max.)Total harmonic distortion (THD+N): <0.01 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +10 dBu)<0.004 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +4 dBu)Frequency response: Analogue: 20 Hz to 30 kHz, +0.5/–1.0 dBDigital: 20 Hz to 20 kHz, +0.5/–1.0 dBChannel crosstalk: –80 dB(1 kHz, PAN fully counter-clockwise / fully clockwise)Maximum gain: 74 dB (MIC to MAIN OUT)54 dB (MIC to INSERT OUT)74 dB (MIC to SUB OUT)79 dB (MIC to CR OUT)75 dB (MIC to MONITOR OUT)75 dB (MIC to FX OUT)24 dB (USB/SD to MAIN OUT)(all EQs flat, PAN fully counter-clockwise / fully clockwise, GAIN knobs at max.)Phantom Power: DC 48 V Computer system requirements Windows: Windows 10 (32-bit, 64-bit)Windows 8.1 (32-bit, 64-bit)Windows 7 (32-bit SP1, 64-bit SP1) Compatible computers: Windows-compatible computer with a USB 2.0 (or higher) port CPU type/speed: Dual core, 2 GHz or faster Memory: 2 GB or more Drivers: USB Audio Class 2.0, ASIO 2.0, WDM (MME) Screen resolution: 1280 px × 800 px or moreMacintosh: macOS Mojave (10.14)macOS High Sierra (10.13)macOS Sierra (10.12) Compatible computers: Apple Mac computer with a USB 2.0 (or higher) port CPU type/speed: Dual core, 2 GHz or faster Memory: 2 GB or more Driver: Core Audio Screen resolution: 1280 px × 800 px or moreUSB audio specifications Sampling rate: 44.1 kHz, 48 kHz Bit depth: 16 bit, 24 bit Maximum number of audio channels: 16 inputs, 14 outputsBluetooth®: Version 5.0 Output class: Class 2(approximate transmission distance: 10 m)* The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic disturbances. Supported profile: A2DP, AVRCP 1.0 Supported A2DP codecs: SBC, AAC A2DP content protection: SCMS-T Power supply and other specifications Power: AC 100–240 V, 50/60 HzPower consumption: 40 WDimensions (W × D × H, overall) : 430 mm × 463 mm × 113 mmWeight: 7 kgPermissible operating temperature range: 5–35 °CIncluded items: AC power cord, Owner’s manual incl. warranty
