Tascam MZ-123BT 3-Ch Multi-Zone Mixer with Bluetooth, 2 Mic Inputs, Euroblock Connectors, and 1U Rack-Mount Design

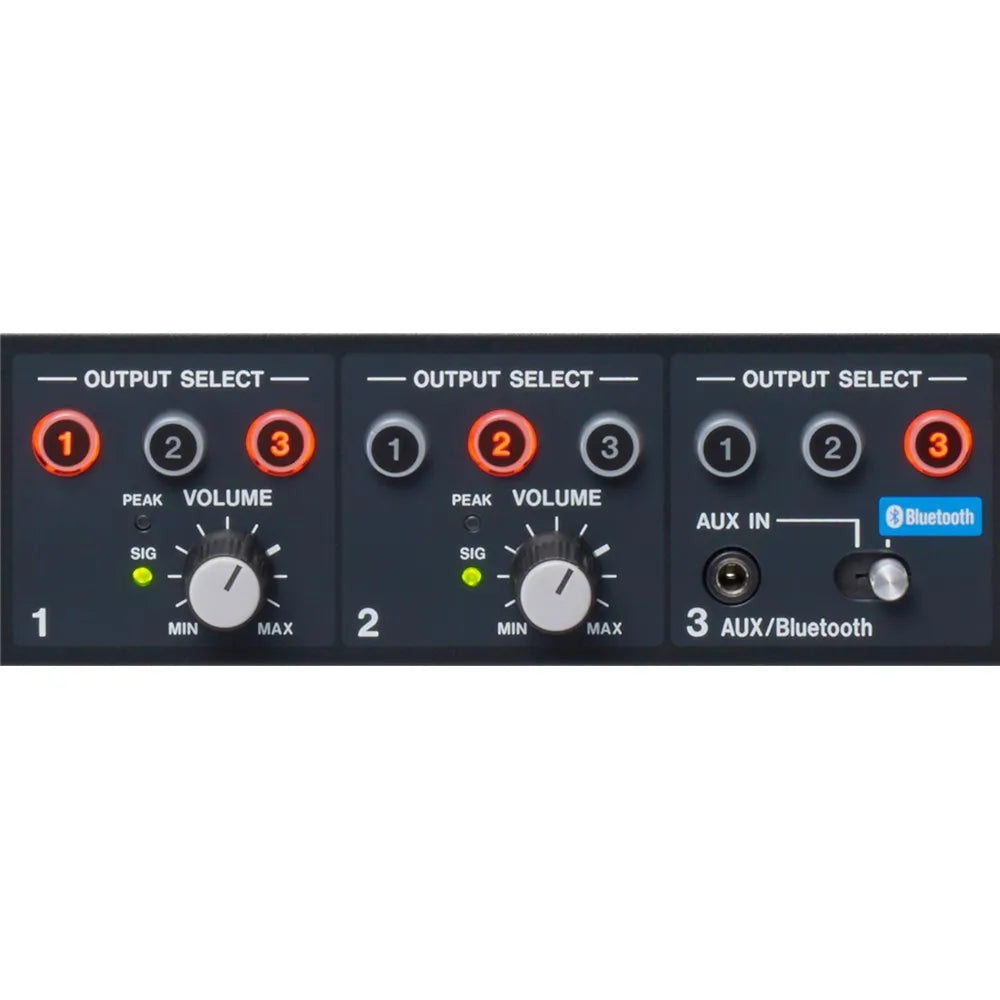

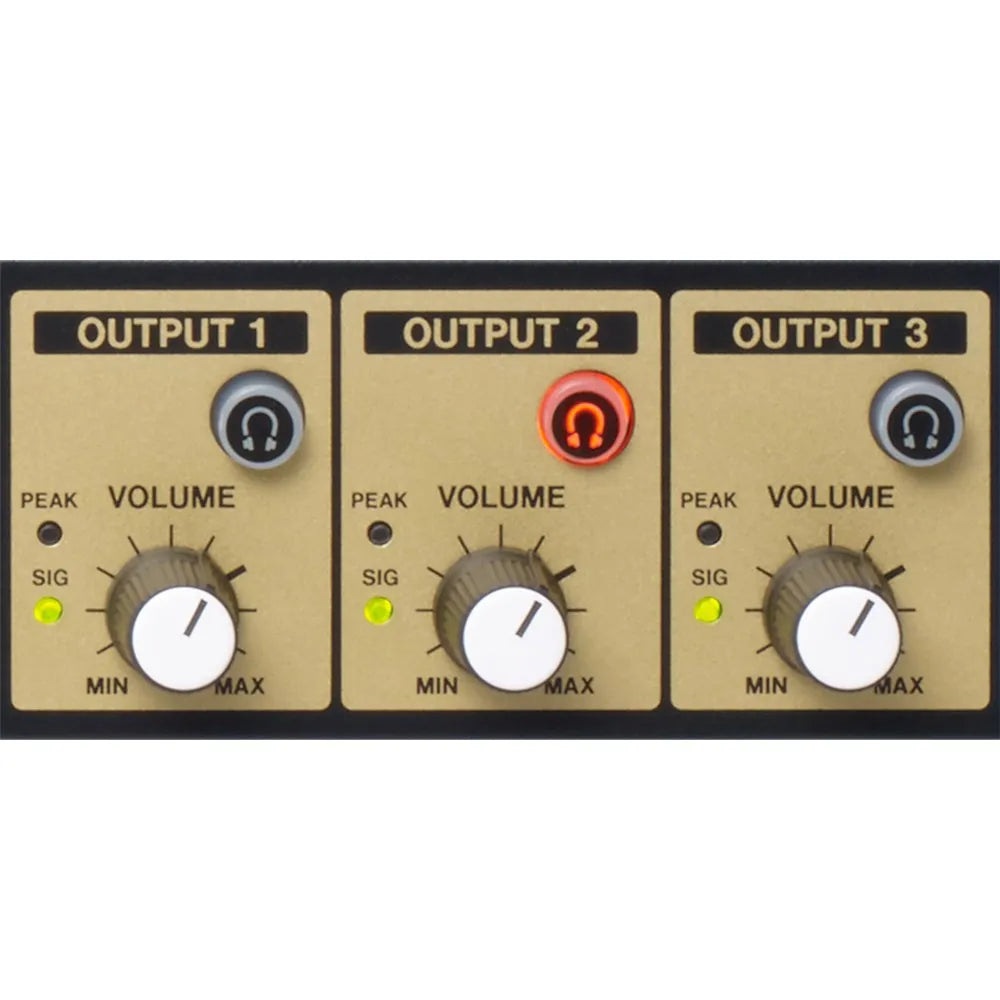

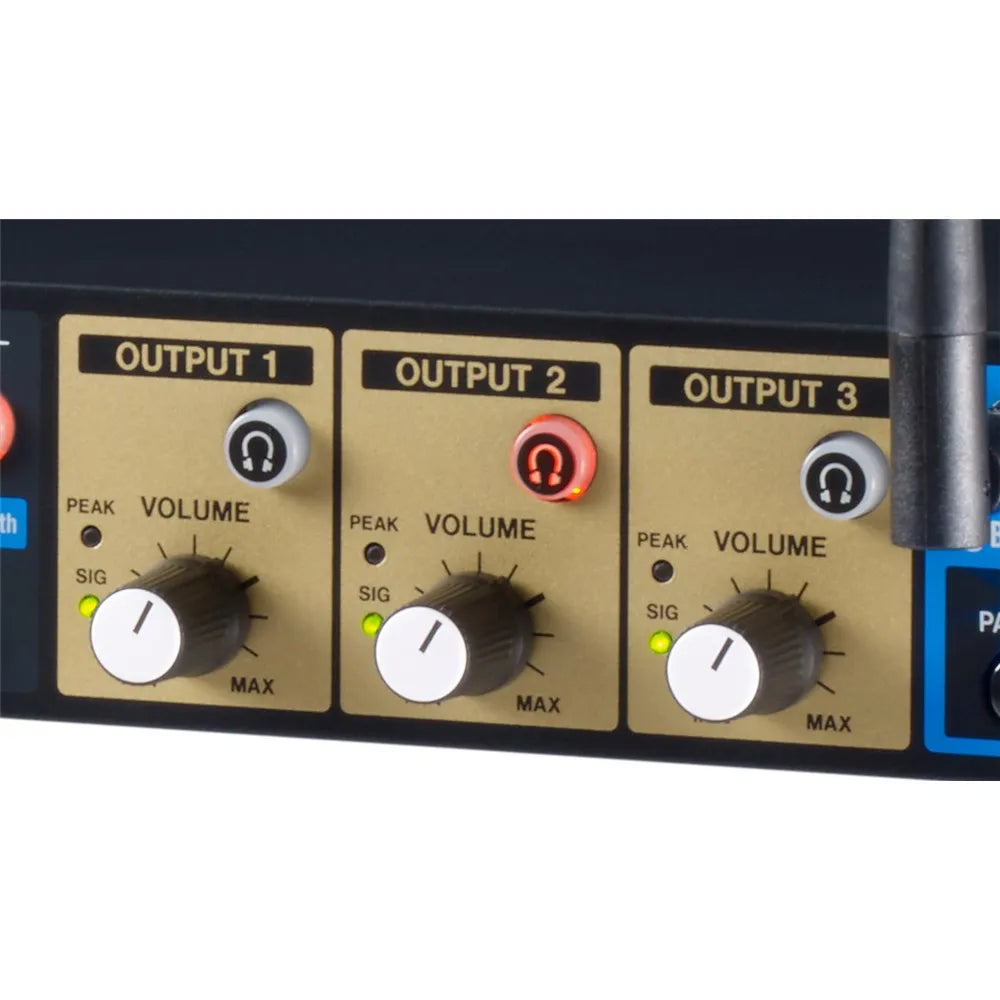

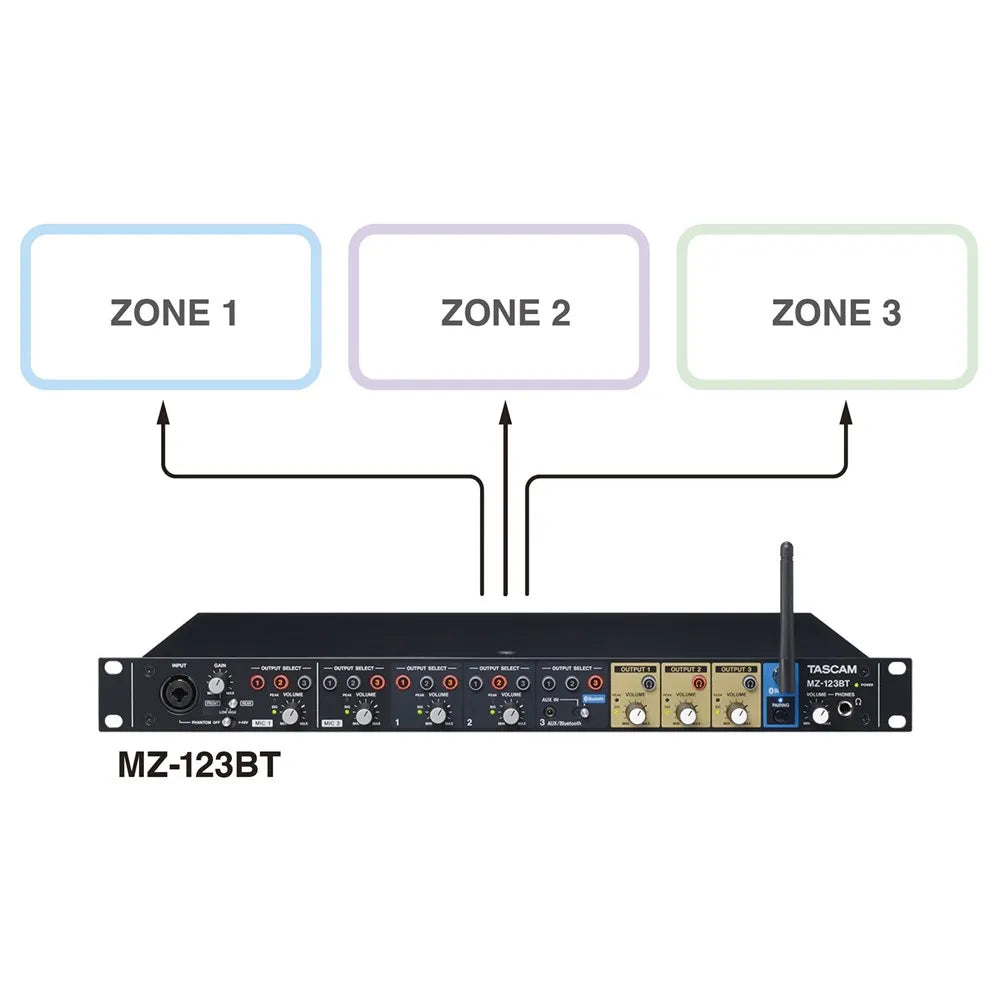

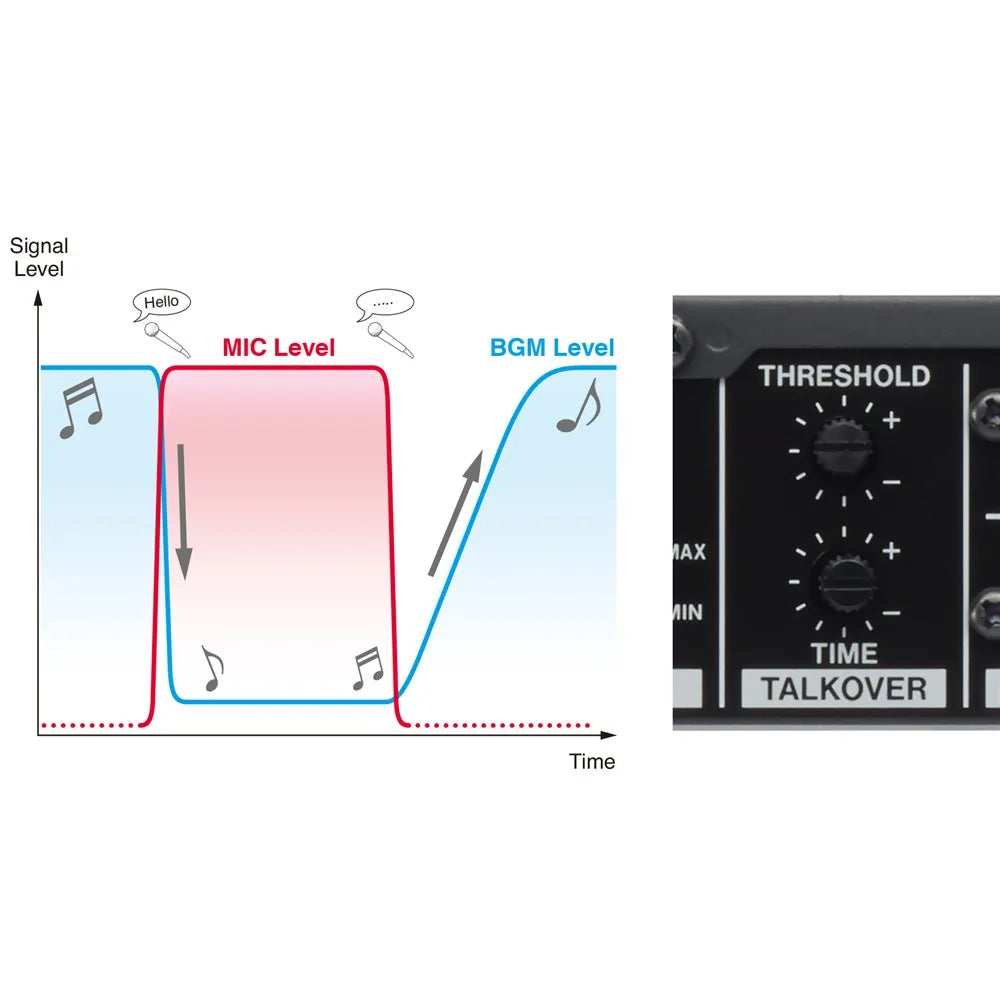

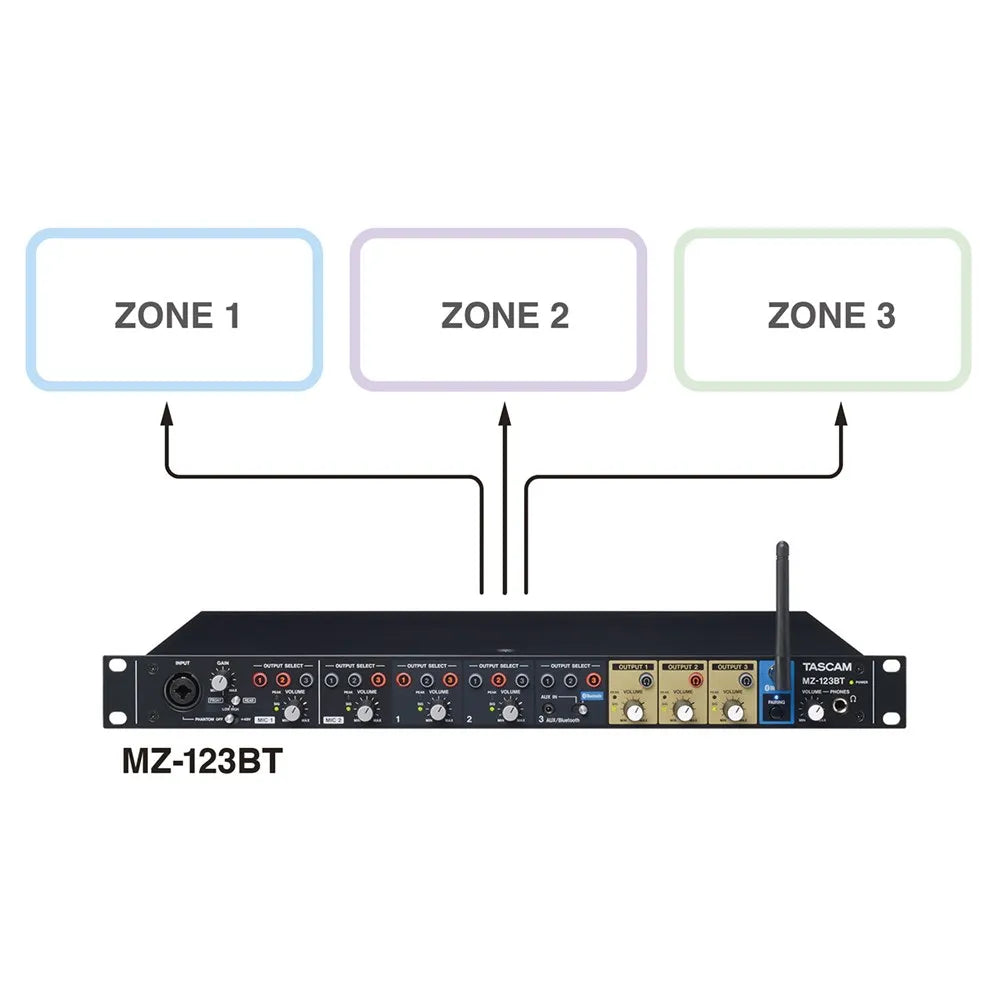

The TASCAM MZ-123BT is a compact 1U multi-channel, multi-zone professional installation mixer that provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. Featuring a simple, intuitive layout for ease of operation, the Bluetooth®-enabled MZ-123BT comes equipped with 2 versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging. Discrete Zone Audio Control and Routing Three discrete Zone Outputs with Volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environment. Three Outputs with Euroblock Connectors Three pair of stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. A MONO/STEREO switch is provided for each output. Three Input Channels Stereo LINE Inputs 1 and 2 (RCA, Unbalanced) allow connection of AV equipment such as TASCAM CD/Solid State Players or similar playback devices. The Channel 3 AUX/Bluetooth® Input allows an additional audio source to be connected via Bluetooth® or 3.5mm mini plug. Each input features a Volume Control knob as well as a Zone Routing button (1, 2 or 3) for audio distribution to desired areas. Simple Layout for Ease of Operation Intuitive front-panel control of Volume, Output, Zone Select and Bluetooth® pairing makes basic operation simple for non-technical staff and workers. More advanced system configuration and operational settings for EQ, Gain and Threshold can be dialed in and set via dedicated back panel knobs. Additional Features Features at a Glance Input Channel sources can be easily assigned to each of the individual 3 Zone Outputs MONO/STEREO select switch on each Output Channel (*1) Euroblock connectors provide seamless connection and configuration in fixed installations 3 Input Channels Channel 1 : LINE input (RCA, Unbalanced) Channel 2 : LINE input (RCA, Unbalanced) Channel 3 : Bluetooth® / 3.5mm (1/8") AUX input (*2) 2 MIC inputs for announcements or Talk Over Individual +48V phantom power switch on each channel 3 band EQ and High Pass Filter for adjusting Input Channel signal tone and quality MIC 1 connection available via a front panel XLR/TRS combo jack or rear panel Euroblock connectors Talk Over feature enables automatic background music volume attenuation in desired Zone when mic audio is detected Headphone jack enables monitoring of each output channel Compact 1U rack-mount size
