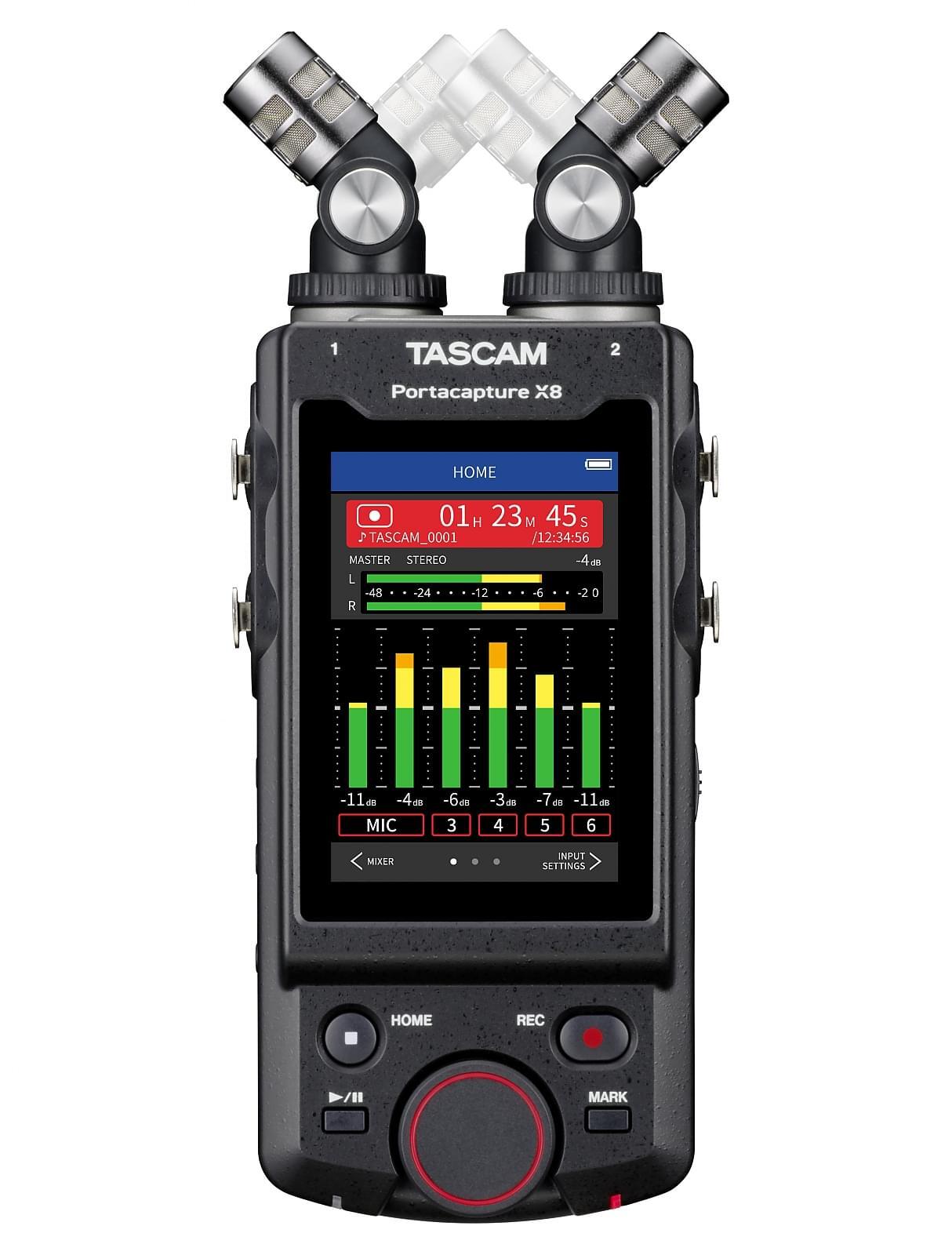

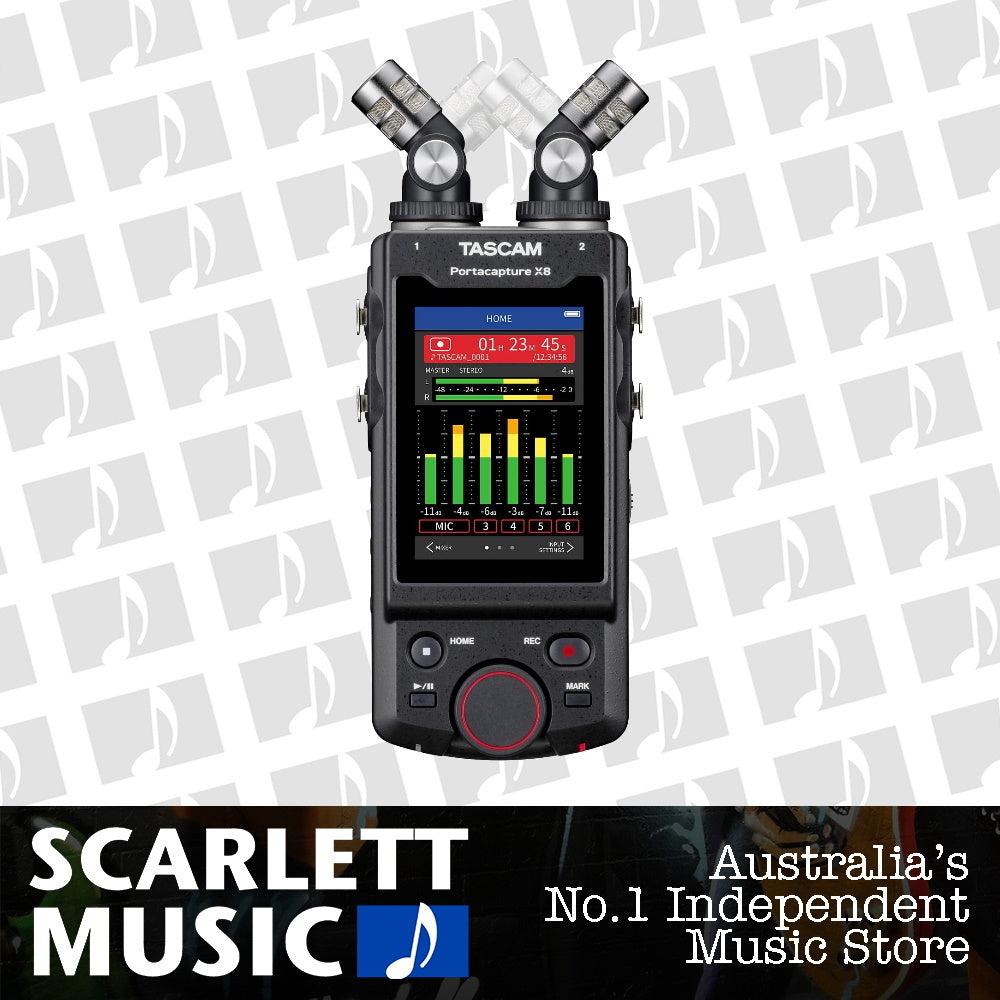

Tascam PortaCapture X8 Multitrack Handheld Recorder

$842.95
$1,199.00 $842.95 Save $356.05
Sale

Includes GST

In stock at our Footscray store. Collect in-store. Stock can move fast. Call 03 4151 5751 to confirm before you visit.
Ready to ship Australia-wide. Most items ship the next business day; some take up to 3 business days. Tracking included.
Make 4 interest-free payments of $210.74 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free

Most items ship the next business day; some take up to 3 business days. Tracked, then 4–9 business days in transit depending on location.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

We’ll email you when it’s ready.

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU PORTACAPTUREX8CMI

The new Launcher system and 3.5-inch color touch panel allow smooth navigation to select the best audio settings that match the application. Taking advantage of these presets, users will have more time to focus on the actual recording without the need to struggle with complicated settings.

Utilizing plug-and-go driverless functionality, the Portacapture X8 can be used as a compact mixer with built-in microphones for live streaming via OBS or similar platforms, and also offers direct recording of video narration and dialogue directly to DAW and editing software. The Portacapture X8 streams up to 8 tracks (6 inputs and 2mix) through USB. By supporting the USB Type-C Power Delivery standard, Portacapture X8 can provide phantom power to each external mic at once with USB bus power. For video or audio conferencing, use the Portacapture X8 as your USB microphones and even record the audio simultaneously.

Recording media microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB)
Recording / playback formats
WAV (BWF) 44.1k/48k/96k/192kHz, 16/24-bit, 32-bit float
MP3 44.1k/48kHz, 128k/192k/256k/320kbps
Number of channels
Input channels 6 channels maximum
Recording tracks 8 tracks maximum (6 tracks, stereo mix)
Analog audio input ratings
Mic inputs (unbalanced)
Input jacks 1-2(support plug-in power)
Connectors 3.5mm (1/8") Mini TRS jacks
Maximum input level +1dBV
Minimum input level -69.3dBV
Input impedance 85kΩ or higher
Mic inputs (balanced)
Input jacks 3-6(input set to "MIC")
Connectors

XLR-3-31 equivalent(1: GND, 2: HOT, 3: COLD)
6.3mm(1/4") standard TRS jacksInput(Tip: HOT, Ring: COLD, Sleeve: GND)

Note: phantom power supported by XLR only
Maximum input level +2dBu
Minimum input level -75dBu
Input impedance 2.2kΩ or higher
Input jacks 3-6(Input set to "LINE")
Connectors

XLR-3-31 equivalent(1: GND, 2: HOT, 3: COLD)
6.3mm(1/4") standard TRS jacksInput(Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal input level +4dBu (GAIN:min)
Maximum input level +24dBu
Minimum input level -53dBu
Input impedance 9kΩ or higher
Line input (unbalanced)
EXT IN jack
Connectors 1/8" (3.5mm) Stereo Mini jack
Nominal input level -10dBV (GAIN:min)
Maximum input level +10dBV
Minimum input level -48dBV
Input impedance 8.5kΩ or higher
Analog audio output
Line output (unbalanced)
LINE OUT jack
Connectors 1/8" (3.5mm) Stereo Mini jack
Nominal output level -14dBV
Maximum output level +6dBV
Output impedance 200Ω
Headphone output
Headphone jack
Connectors 1/8" (3.5mm) Stereo Mini jack
Maximum output 45mW + 45mW
(THD+N 0.1% or less, into 32Ω)
Built-in speaker 0.4W (mono)
Control input/output ratings
USB port
Connectors USB Type-C
Format USB2.0 HIGH SPEED mass storage class
Bluetooth® device connector For Bluetooth® adapter (AK-BT1) only
Power 4 AA batteries (Alkaline, Ni-MH or Lithium-ion)
USB bus power from a computer
TASCAM PS-P520U AC adapter (sold separately)
Power consumption 7.5W (maximum)
Dimensions 83 (W) × 205.6 (H) × 41.5 (D) mm
※including protrusions
Weight 472g / 381g (with/without batteries)
Operating temperature range 0 - 40°C
Included Included mics × 1 (left / right pair)
AA alkaline batteries × 4
Owner's Manual (including warranty) × 1
TASCAM ID registration guide × 1
