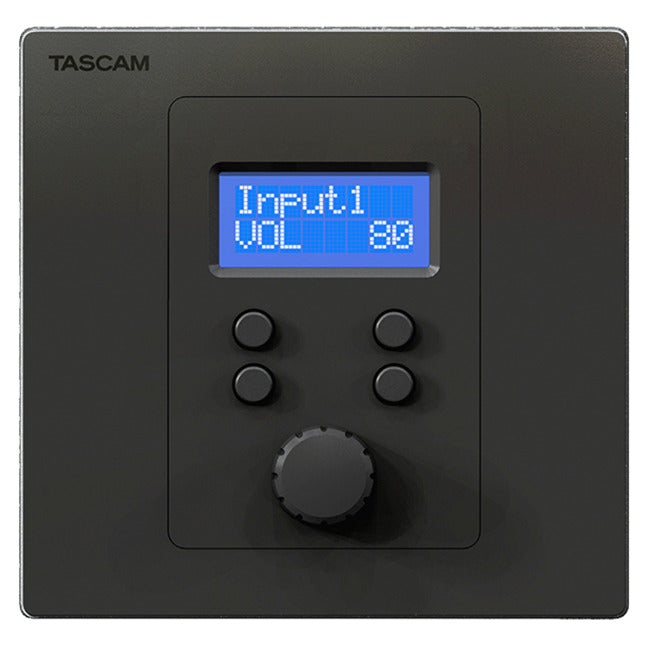

TASCAM R86 Wall Mount Controller For Mx-8a

Product Information: The RC-W100-R120 / RC-W100-R86 Wall Mount Controllers for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100-R120 / RC-W100-R86 Wall Mount Controllers incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches. Two different panel sizes are availableRC-W100The two models address a variety of world markets, with the RC-W100-R120 designed for the U.S. and Japan, while the RC-W100-R86 is compatible with switch boxes in Europe. Wall-mounted programmable controller for MX-8A Equipped with 1 encoder (with push switch) and 4 switches Enables switching sources and adjusting volume (including muting) Functions can be assigned to the encoder and the switches using TASCAM MX CONNECT Prevents end-users from making mistakes by assigning only necessary functions to the controller Two source switching modes available Easy-to-read display Name of the selected source and current volume can be checked Automatic backlight off function Daisy chaining of up to 8 units is possible using cables rated category 5e or higher (maximum length 200 m) Power supply can be provided to the unit via MX-8A (RS-485) Reduces power construction and installation costs Two different panel sizes are available RC-W100-R120 and RC-W100-R86 are sold separately "RC-W100-R120" is compatible with switch boxes commonly used mainly in the US and Japan. "RC-W100-R86" is compatible with switch boxes commonly used mainly in Europe. * TASCAM MX CONNECT Software V1.2.0 or upwards is needed to use the RC-W100. Specifications: Model:RC-W100-R120RC-W100-R86Input/output ratingsRS-485 connector *Connector: RJ-45 x2Cables: category 5e or higher cablesGeneralPower: powered by MX-8APower consumption:0.24W0.24WDimensions: 70 x 114 x 54 mm (W x H x D, including protrusions) 87 x 87 x 54 mm (W x H x D, including protrusions)Weight:140g140gOperating temperature range: 0 - 40°C (32 - 104°F)Included items: Owner's Manual (including warranty)
