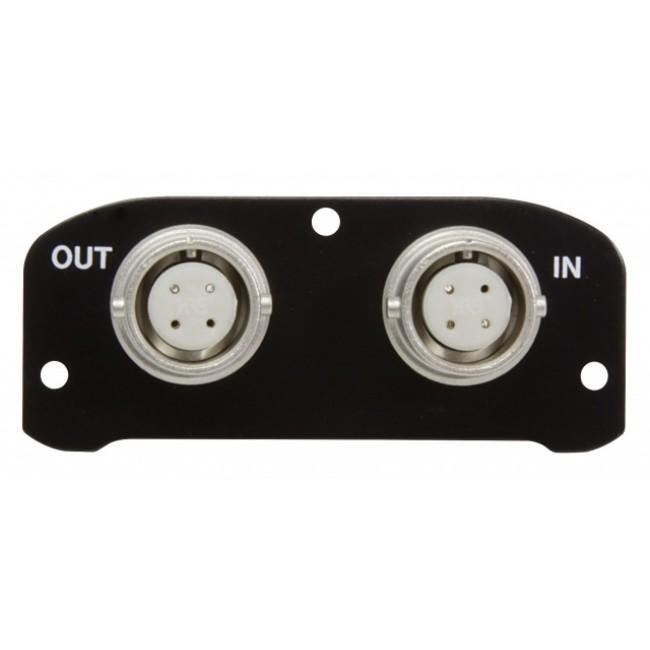

TASCAM SONY/RAMSA Adapter For Dr-10c

Product Information: TASCAM’s DR-10C-series recorders connect to your lavaliere microphone to create a compact recording system that fits on a belt pack. Two versions are available: the DR-10CS for Sennheiser mics and DR-10CH for Shure microphones. Additionally, option kits are available for Sony/RAMSA (AK-DR10CR.) and Shure (AK-DR10CH) The DR-10CS & CH recorders have both inputs and outputs, so they can either be used stand-alone or with a wireless transmitter. When used with a transmitter, the DR-10C acts as a backup to protect against wireless dropouts during recording. For lectures or worship services, the DR-10C can record the entire program before it gets to the front of house system. And for events like weddings and reality TV production, the DR-10C is a compact recording system for body mics. The lightweight DR-10C runs for hours on a single AAA battery. It records to standard microSD media. Recording features include auto-gain and a low-cut filter for simple setup. Its dual recording feature records a safety track of your audio at a lower level, so in case of distortion you have a non-clipped backup. When multiple units are used, an infrared signal can synchronize settings between recorders. Whether using it as a backup or as a primary recording system, there’s nothing else like the TASCAM DR-10CS and CH. Specifications: Recording media microSD card(64MB to 2GB), microSDHC card(4GB to 32GB) Media discharging Push-Push type (Guard cover mounted) Recording format WAV(BWF) Sampling frequency 48kHz Quantization bit rate 24bit Number of channels 1-channel (Mono) Analog audio Inputs Connector DR-10CS 3.5mm(1/8") TRS jack with screw-lock (Sennheiser) DR-10CH Mini XLR 4pin, Male (SHURE) AK-DR10CH Mini XLR 4pin, Male (SHURE) AK-DR10CR HIROSE KMC-9BRF-4S Pin assign is different from SONY and RAMSA(Switchable with slide switch on PCB) MIC input gain LOW / MID / HIGH Input impedance 32kohm or more PHONES Connector 3.5mm(1/8") stereo mini jack (DUAL MONO) USB Connector Micro-B type 4pin Protocol USB2.0 HIGH SPEED mass storage class Power 1 AAA battery (Alkaline battery/ Ni-MH battery / Lithium battery), USB bus power Power consumption 0.45W Battery operation time WAV,24 bit / 48kHz Rec, without headphones, limiter : OFF , Dual Rec : OFF , JEITA Rec Alkaline battery (EVOLTA) Approx 10 hours Ni-MH battery (eneloop) Approx 8 hours lithium battery (Energizer ULTIMATE LITHIUM) Approx 15.5 hours Battery (RTC) Lithium × 1(built in with soldering) Dimensions DR-10CS / DR-10CH 52(W) × 55.6(H) × 24.4(D) mm 2.0(W) × 2.2(H) × 1.0(D) inch AK-DR10CH 49.2(W) × 20.9(H) × 19.2(D) mm 1.9(W) × 0.8(H) × 0.8(D) inch AK-DR10CR 49.2(W) × 20.9(H) × 21.5(D) mm 1.9(W) × 0.8(H) × 0.8(D) inch Weight DR-10CS / DR-10CH 63g (including battery) / 51g (without battery) AK-DR10CH 16.3g AK-DR10CR 16g Operating temperature 0?C to 40?C Accessories DR-10CS / DR-10CH USB cable,Connection cable, Carrying case, Clip, Belt, Owner's Manual (including warranty) AK-DR10CH / AK-DR10CR Connection cable, Spare screws × 3 Audio performance Frequency response 20Hz to 22kHz +1/-2dB (IN to PHONES) Computer compatibility Windows OS Windows 7, Windows 8, Windows 8.1 Macintosh OS OS X Mountain Lion(V10.8), OS X Mavericks(10.9)
