• TASCAM VS-R265 4k Av Stream Encoder/decoder
1 1
Tascam

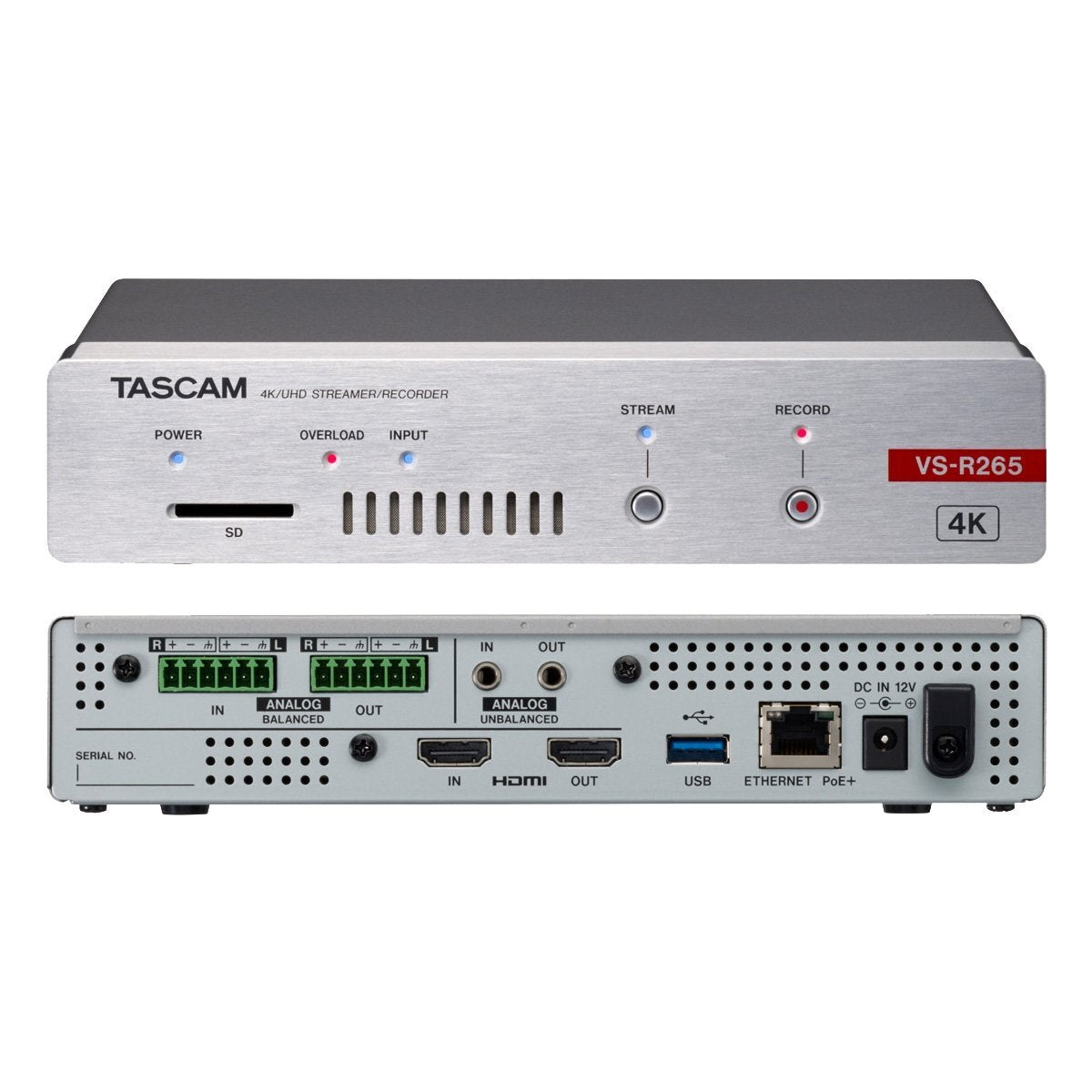

TASCAM VS-R265 4k Av Stream Encoder/decoder

$2,558.95
$3,199.00 $2,558.95 Save $640.05
Sale Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Afterpay and Zip are available at checkout on orders $100–$2,000.

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU VS-R265CMI

Product Information VS-R265 4K/UHD AV Over IP Live Streaming EncoderThe VS-R265 is a 4K/UHD AV over IP streaming encoder and decoder that simultaneously records, encodes, streams, and decodes 4K video streams (3840x2160) using High Efficiency Video Coding (HEVC), a high efficiency coding scheme that delivers H.264 video quality at half the bit rate. Specifications VS-R264 VS-R265 Video HDMI IN Connector HDMI v1.4a (Type A) HDMI OUT Connector HDMI v2.0 (Type A) Input Resolutions 2160p - 30/ 29.97/ 25 / 24 / 23.98 fps 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps 720p 60 / 59.94 / 50 fps 576p 50 fps 480p 60 / 59.94 fps Frame Rate Limit on/off Encode Scalling Resolutions Passthru / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p Passthru / 3840x2160p / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p Encode Format H.264 (Baseline / Main/High) H.264 / H.265 Encode bitrates 500k to 30M bps Bitrate Control Variable / Constant key frame interva 0.25-1.00-16.5(sec) or 3-1000(frame) Audio Analog Audio inputs (UNBALANCED) Connector 3.5mm Stereo mini jack Nominal input level -10dBV (0.316Vrms) Maximum input level +6dBV (2.0Vrms) Analog Audio inputs (BALANCED) Connector Euroblock (balanced) 3.81 mm pitch Nominal input level +4dBu(1.23Vrms, Ref.Level other than -9dBFS)+6dBu(1.55Vrms, Ref.Level -9dBFS) Maximum input level +15dBu(4.36Vrms, Ref.Level -9dBFS)+18dBu(6.16Vrms, Ref.Level -14dBFS)+20dBu(7.75Vrms, Ref.Level -16dBFS) Analog Audio outputs (UNBALANCED) Connector 3.5mm Stereo mini jack Nominal output level -10dBV (0.316Vrms) Maximum output level +6dBV (2.0Vrms) Analog Audio outputs (BALANCED) Connector Euroblock (balanced) 3.81 mm pitch Nominal output level +4dBu(1.23Vrms) Maximum output level +15dBu(4.36Vrms, Ref.Level -9dBFS)+18dBu(6.16Vrms, Ref.Level -14dBFS)+20dBu(7.75Vrms, Ref.Level -16dBFS) Output Volume -?, -72 to +6dB (1dB step) Audio Codec AAC, 64k to 512k bps, 32k/44.1k/48k Hz Storage Storage Media USB Drive, SD/SDHC card USB Connection USB3.0 A-type Record Bit Rates 500k to 30M bps Stream Video Transport Protocols RTMP / RTSP / HLS / Unicast / Multicast Simultaneous Streaming 1 x RTMP / 2 x Unicast / 1 x Multicast Stream Bit Rates 500k to 30M bps Network Network Connectivity 1Gb Ethernet Full-featured web browser based UI Designed for tablets and desktopsEncoder and decoder configuration for unicast, multicast and RTMP IP Address DHCP (Default) / Static Command and Control HTTPAuto-detect and discover other TASCAM encoder and decoder units on subnet. Other Power PoE+,TASCAM PS-P1220E AC adapter (sold separately) Dimensions 214(W) × 44.5(H) × 136.1(D)mm (including protrusions) Weight 0.85kg Operating temperature range 0 to 40 °C Included items Installation brackets, Euroblock plugs, Cable band kit, USB memory(including Discovery app, reference Manual), Quick Start guide, warranty
