JTS Professional

UA-960 antenna distributor with cascade outputs powers receivers and antennas

$1,042.49
$1,042.49
Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message
Make 4 interest-free payments of $260.63 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU JP-UA960

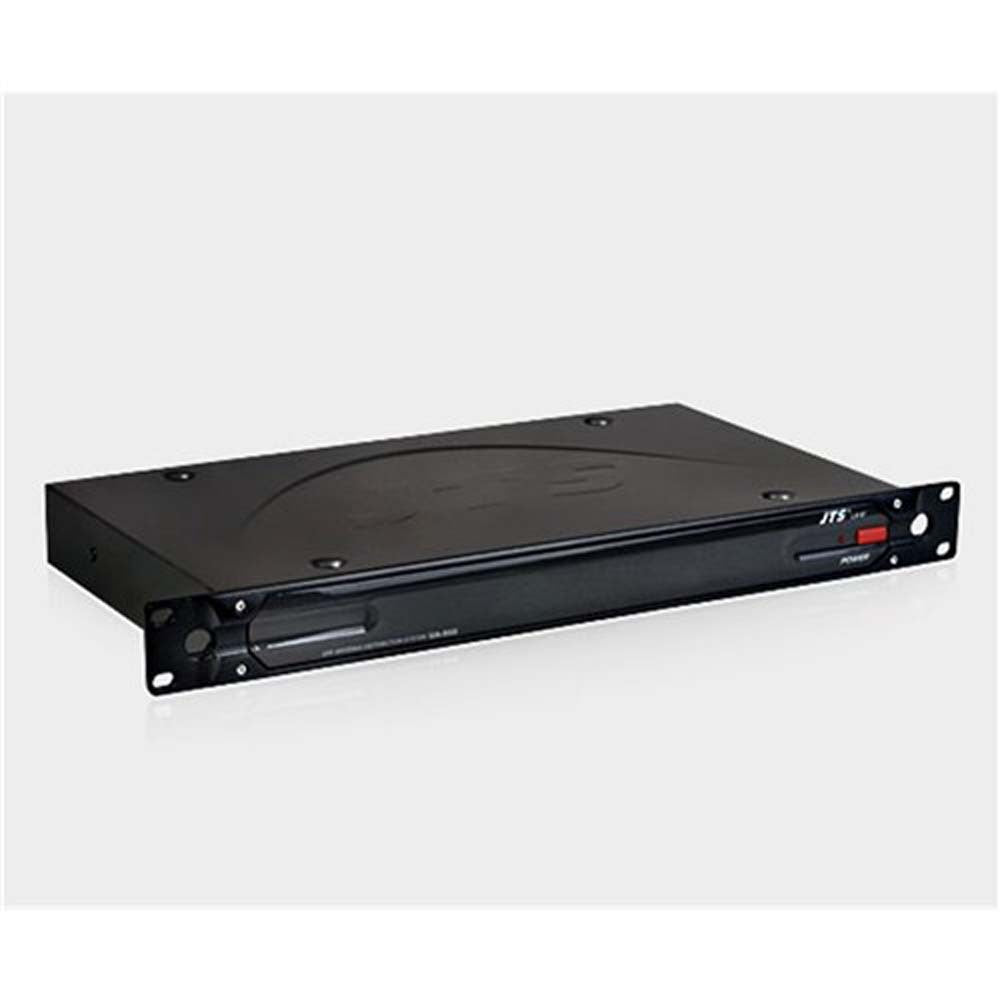

THIS PRODUCT IS FOR ONLINE ORDER ONLY. UA-960The JTS UA-960 is a full range UHF antenna splitter that routes antenna signals from a pair of antenna to several receivers in a multi-channel system.The UA-960 also amplifies the RF signals to compensate the loss incurred from splitting signal power. Bulit-in DC distribution provides four DC 12V power supply for receivers. A single UA-960 can support up to four wireless receiver. Multiple UA-960 can be cascaded for more wireless receivers. * 1 extra BNC socket that can be easily cascaded with another antenna distributor. SPECIFICATIONSFrequency Range470-960 MHzRF Output Level(Gain)3 dB ± 2Cascade output level0dB ~ +2dBOutput Connection Isolation‚¬°¥ 25 dBThird Order Intercept Point24 dBmImpedance50 OhmPower Consumption60WInput AC Voltage100 ~ 240 V switching powerOutput DC Voltage+12V ---1A x 4Antenna Booster DC Voltage12VDimension480(W)*45(H)*250(D) mm(standard 19 and 1 U case)Net Weight2.15 Kgs
