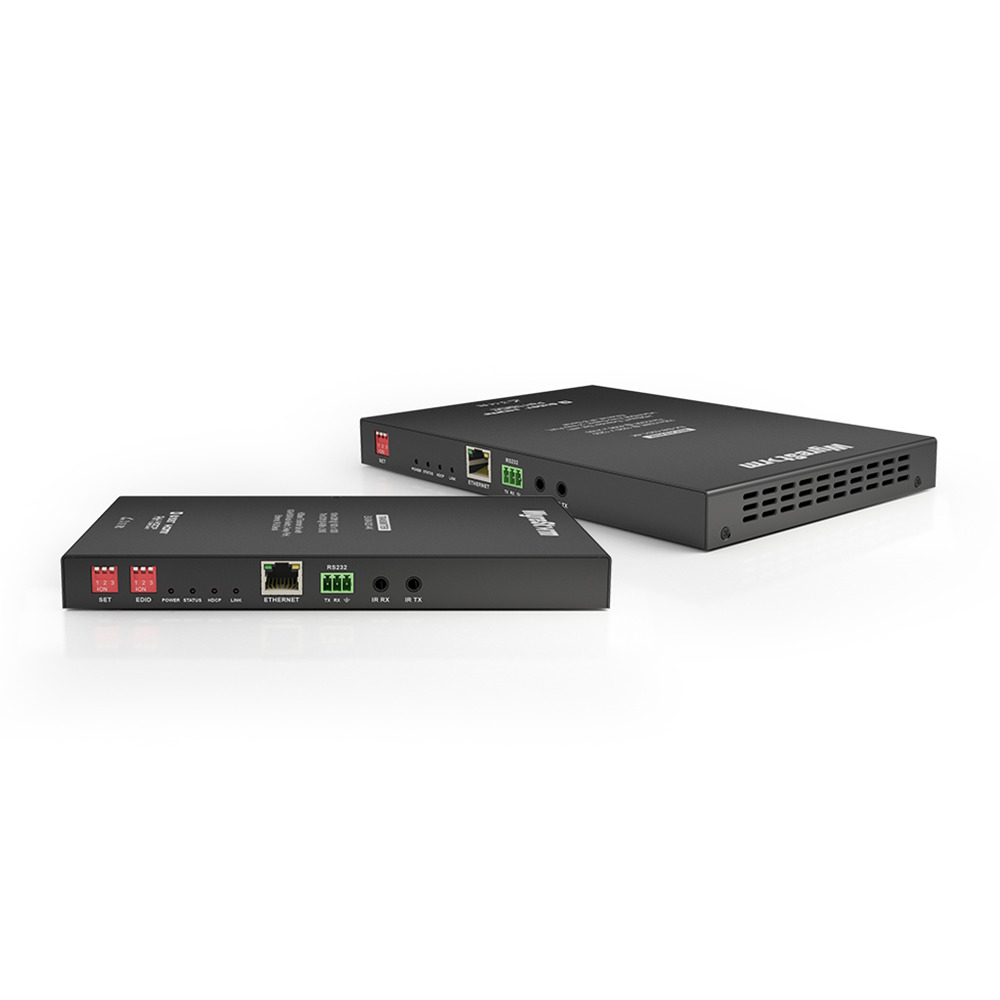

Wyrestorm EX-SW-0201-4K HDBaseT VGA/HDMI Extender Set

THIS PRODUCT IS FOR ONLINE ORDER ONLY. HDBaseT VGA/HDMI Extender Set with Ethernet Bidirectional IR RS-232 and 2-Way PoH (4K: 70m/230ft | 1080p: 100m/328ft)EX-SW-0201-4KSupporting resolutions up to 4K this fully-featured Class A HDBaseT extender is designed for use in small meeting room or classroom environments where distribution and control of VGA or HDMI devices up to 100m/328ft is required.DUAL-INPUT TRANSMITTERWhether it's a classroom or meeting room you can never be too sure what devices will turn up. That's why we've included VGA+audio and HDMI connections on this transmitter it'll also auto-switch between them should both need to be connected simultaneously.FAULTLESS CLASS A HDBASET TRANSMISSIONProudly flying the flag for the full Class A HDBaseT feature set the EX-SW-0201-4K levels-up supporting not only 4K video (HDMI input only) HD Audio and control but also allowing Ethernet passthrough and 2-way PoH meaning the extender can be powered from a single PSU located at either end.AUDIO DE-EMBED ON RECEIVERMeeting spaces don't usually have the audio systems capable of handling HDMI connectivity once connected to the screen the signal is often terminated. We've included an audio output on the receiver of this extender to feed a simple stereo audio signal to a local audio system if sound reinforcement is required.FLEXIBLE INSTALL OPTIONS WITH 2-WAY POHNo 2 installs are the same that's why we've enabled all of the H2 extender line up to be powered from either the TX or RX side.FEATURESA full-featured HDBaseT extender set with the added feature of a VGA/HDMI auto-switching transmitterTransmit HD resolutions up to 1920x1200 to 100m/328ftTransmit 4K@60Hz (4096x2160) to 70m/230ftHDCP 2.2 compliant3D supportedAuto-switching transmitter detects and selects VGA (+audio) and HDMI devices as soon as the source is connected2-way PoH gives flexible installation options by allowing either the transmitter or receiver to be powered remotelyAudio embed on transmitter and audio de-embed on receiver via 3.5mm jack connection for HDMI or VGAEDID management and DIP switch selection for manual setting of resolution RS-232 control/firmware update function and long cable modeLow-profile 18mm chassis for unobtrusive installationCable termination follows IEEE-568B standardsLED indication for power supply to units signal status to show established display connection HDCP presence in signal and transmission link.Threaded bushings allow use of both standard and locking DC power plugsEnergy efficient universal power supply includedMounting brackets includedSPECIFICATIONSAudio and VideoInputs(Transmitter)1x HDMI 19-pin type A1x VGA In 15-pin VGA VESA (D-SUB 15)1x Audio In 3.5mm (1/8in) Stereo Jack(Receiver)1x HDBaseT 8-pin RJ-45 femaleOutputs(Transmitter)1x HDBaseT 8-pin RJ-45 female(Receiver)1x HDMI 19-pin type A female1x Audio Out 3.5 (1/8in) Stereo JackAudio Formats: 2ch PCM | Up to 7.1 DTS-X and Dolby AtmosVideo Resolutions (Max)Video ResolutionsHDMICat6Cat6a/71920x1200p @60Hz 16bit15m/49ft70m/230ft100m/328ft3840x2160p @30Hz 8bit 4:4:47m/23ft70m/230ft100m/328ft4096x2160p @60Hz 8bit 4:2:07m/23ft70m/230ft100m/328ftSupported Standards: DCIMaximum Pixel Clock: 297mHzCommunication and ControlHDMI: HDCP 2.2 Compliant | EDID | DVI/D supported with adapter (not included)HDBaseT: HDCP 2.2 Compliant | EDID | 2-way PoH | Bidirectional IR and RS-232RS-232: 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseTIR:1x IR TX 3.5mm (1/8in) Mono | Bidirectional over HDBaseT1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseTEthernet: 1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiatingPowerPower Supply: Input: 100~240V AC 50/60Hz | Output: 12V DC 2AMax Power Consumption: 26.5WPoH: 48V 15.4WEnvironmentalOperating Temperature: 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90% non-condensingStorage Temperature: -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90% non-condensingMaximum BTU: 90.42Dimensions & WeightRack: Units/Wall Box 1UHeight: 20mm/0.79inWidth: 200mm/7.88inDepth: 134mm/5.28inWeight: 0.6kg/1.32lbsRegulatorySafety and Emission CE | FCC | RoHS
