XVIVE U4 In-Ear Monitor Wireless System 2.4Ghz

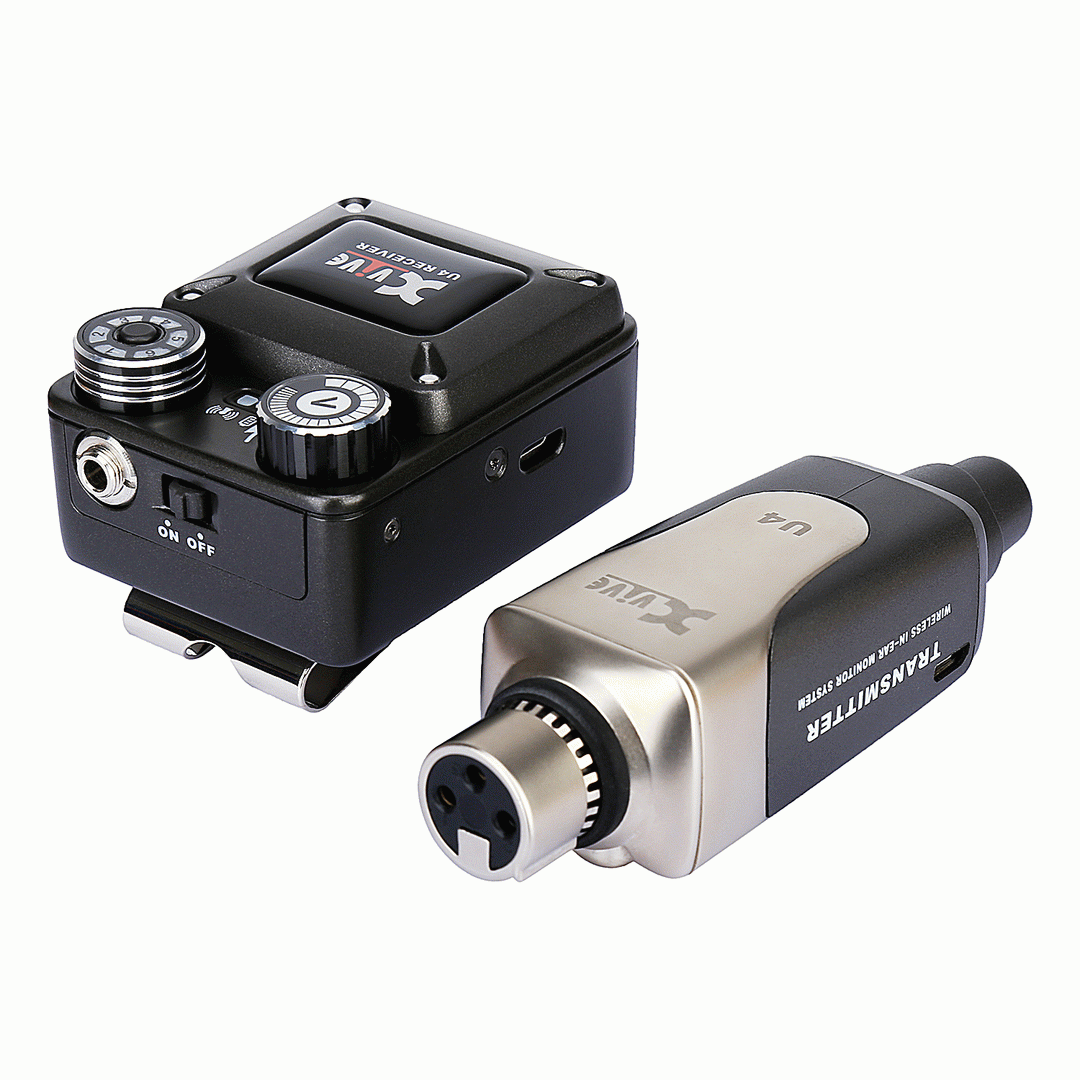

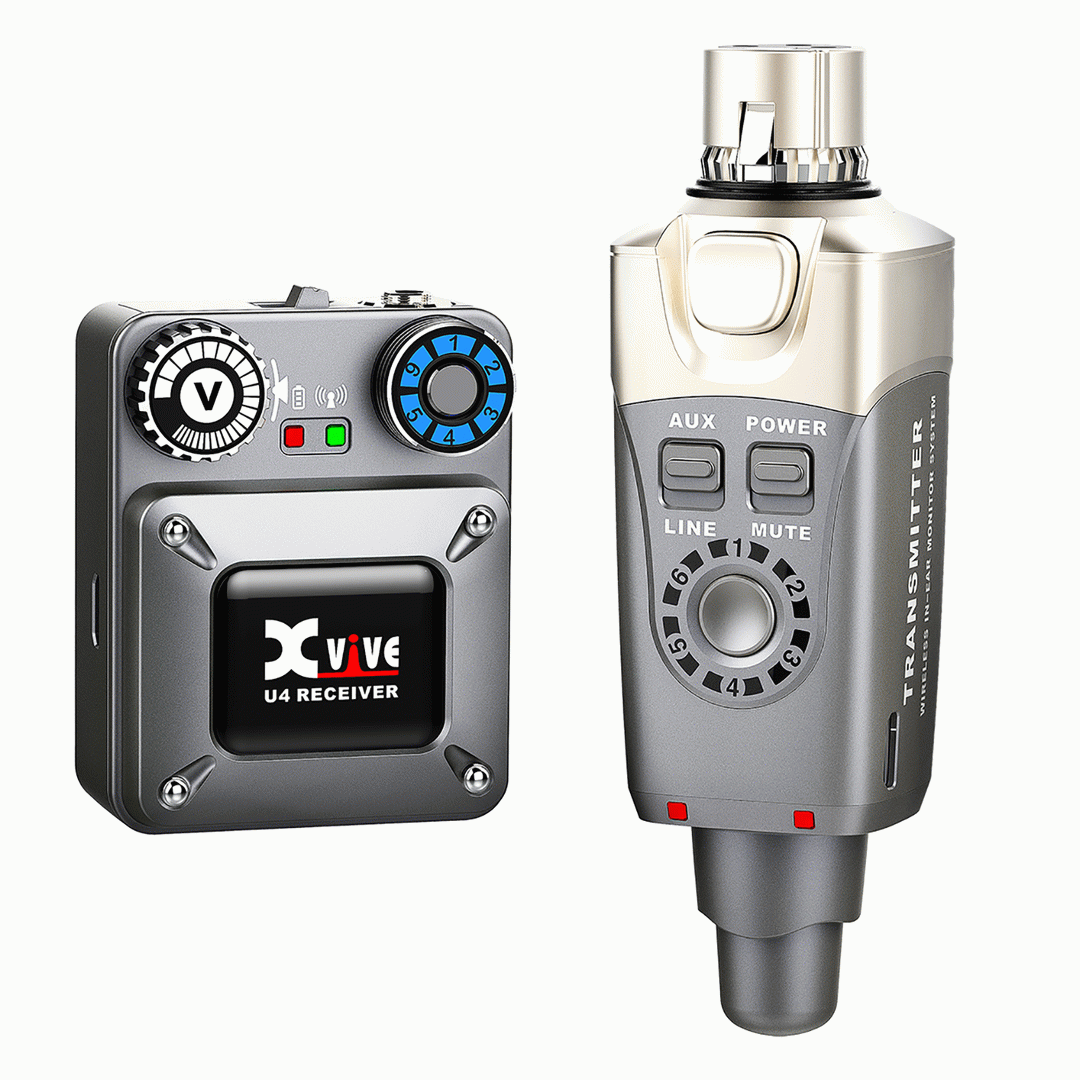

XVIVE U4R In-Ear Monitor System -1x Receiver & 1x Transmitter

The U4 personal wireless monitoring system delivers great sounding audio to your

favourite in-ear monitors.Enhance your stage performance with freedom from wires with U4’s easy to use and

portable plug-and-play design. Built using the highest quality components housed

in a durable metal chassis ensures reliable wireless performance at every show.

Easy to carry, easy to set up, plug in and turn on the power to build your

wireless In-ear monitor system

LINE MODEUse with mixers or other professional audio devices that send line-level

signals.

AUX MODEUse when connecting consumer audio devices such as portable audio players or computers.

Provides smooth frequency response with any headphones.

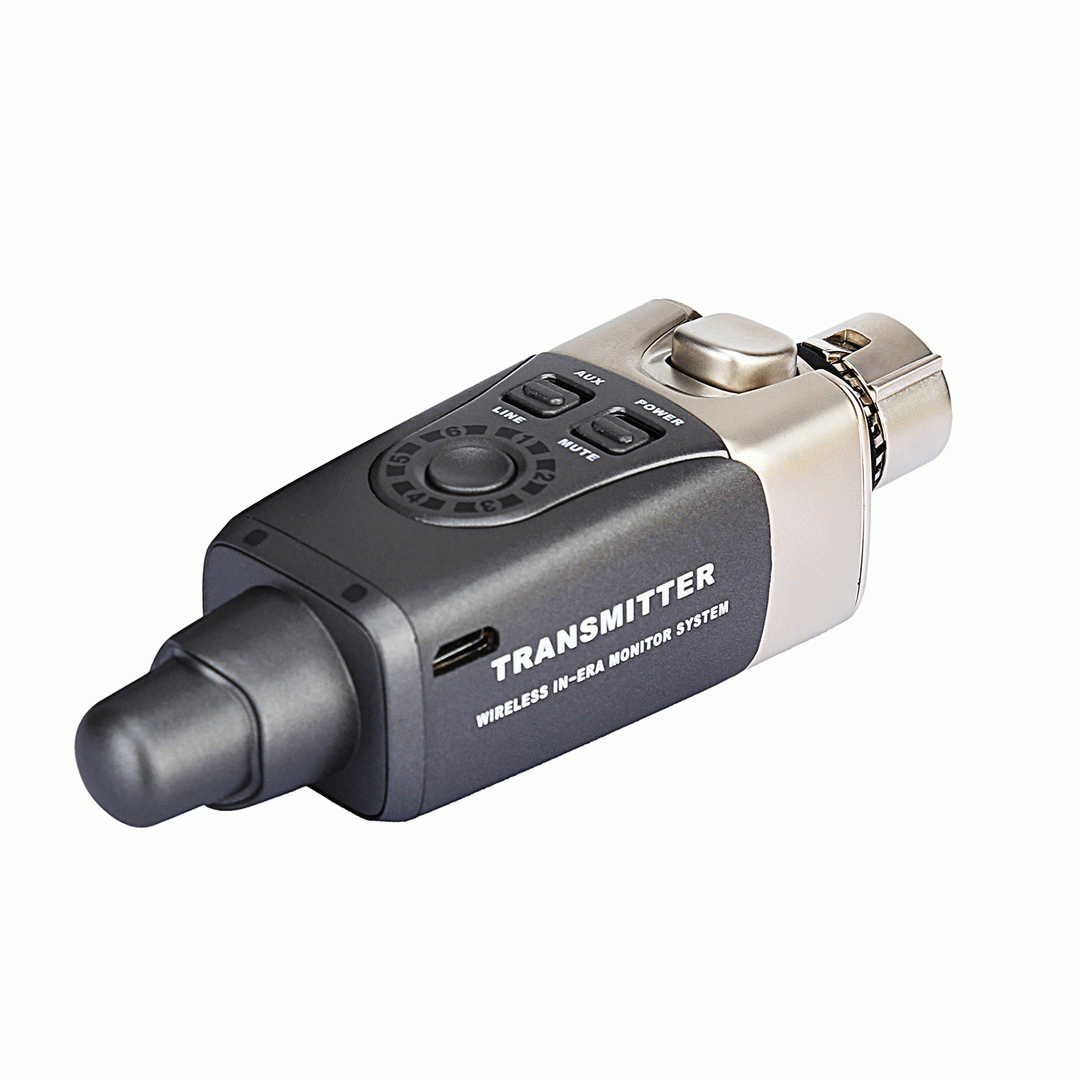

Transmitter with the 1/4”ts conversion put in to the mixing Aux channel, set

transmitter to aux mode. Or Transmitter put in the mixing XLR main output? for

Band playing, silent rehearsal etc.. set transmitter to Line mode.

Use one transmitter to send signal to Multiple Receivers- creates monitoring for

the entire band. Send the signal from one transmitter to as many receivers as

needed simultaneously, Simply set as many receivers as needed to the same

channel as the transmitter. OR - In situations where multiple “mixes” are needed

on stage, each unit has 6 select-able channels for creating up to 6 individual

discrete mixes. If you use more than one transmitter, The receiver can switch

between different sound sources by simply changing the channel selector.

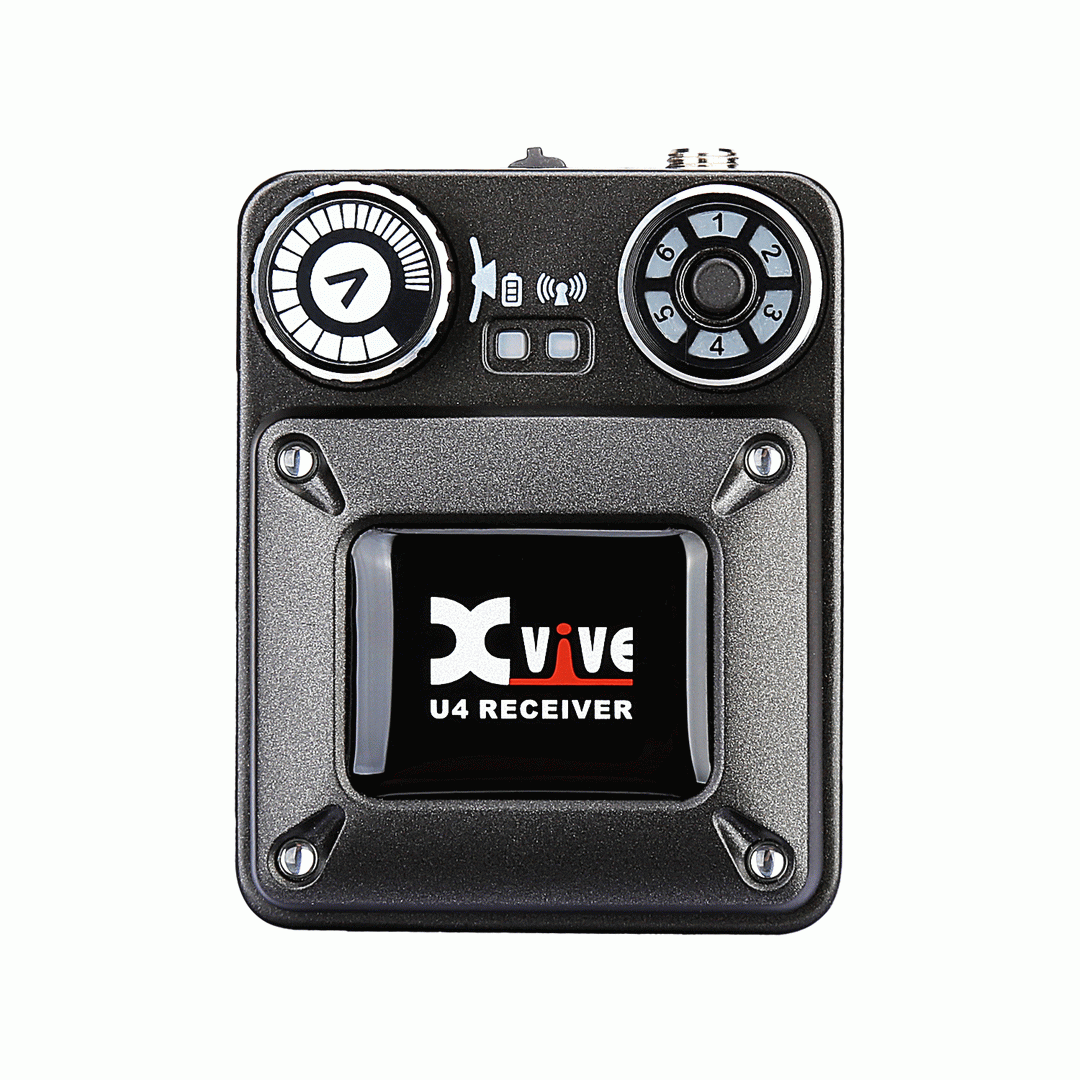

2.4GHz wireless in-ear monitor receiver create your personal monitor mix.

Solid RF connection over a 90 feet range (actual range depends on RF signal

absorption, reflection and interference)

Up to 107 dB signal-to-noise ratio provides clear, detailed audio at any

volume. High Resolution 24-bit/48kbps audio. Broad 20Hz-20KHz frequency

response. Dynamic Rang 107 dB.

Less than 5ms Latency, Simultaneous broadcasts on 6 channels. 5 hours of

battery life (rechargeable battery for both transmitter and receiver)

Provides smooth frequency response with any headphones.

Specifications:

2.4Ghz wireless In-ear monitor System -1x Receiver & 1x Transmitter

Up to 107 dB signal-to-noise ratio provides clear, detailed audio at any

volume

High Resolution 24-bit/48kbps audio

Less than 5ms Latency, Simultaneous broadcasts on 6 channels

Wireless Type2.4GHz band is optimal for wireless, Approved for use worldwide.

Musical applicationsWorks with any audio mixer or other gear with a line level balanced or unbalance audio output. Great for live performance, studio recording and rehearsals.

Other applicationsTheatre, House of Worship, Schools, Corporate Presentations

Audio Frequency Response20Hz – 20KHz (-3dB)

Working Range9090ft.Actual range depends on RF signal absorption, reflection and interference.

Sampling RateHigh Resolution 24-bit/48kbps audio

Dynamic Range107dB

Signal-To-Noise RatioUp to 107 dB signal-to-noise ratio provides clear, detailed audio at any volume.

Battery LifeUp to 5 hours

Delay time5ms Latency, Simultaneous broadcasts on 6 channels

InputMono balanced XLR or mono unbalanced 1/4”TS input with supplied adaptor

Headphone typeProvides smooth frequency response with any headphones with 3.5mm
