• Xvive V21 Echoman Delay Pedal
  • Xvive V21 Echoman Delay Pedal — view 2
1 2
Xvive

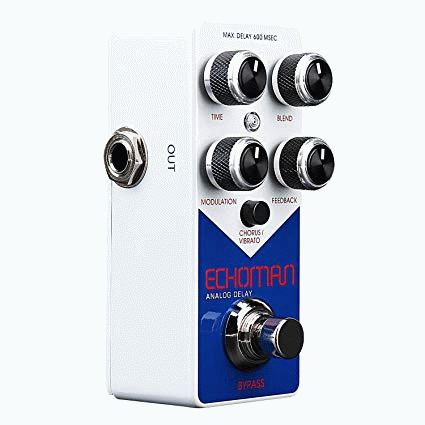

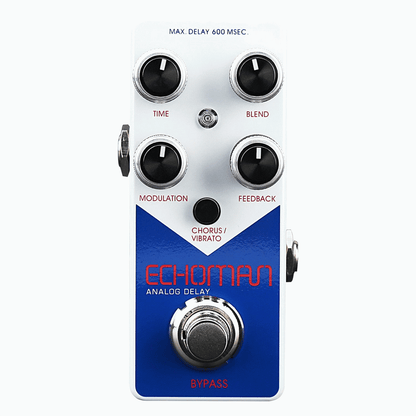

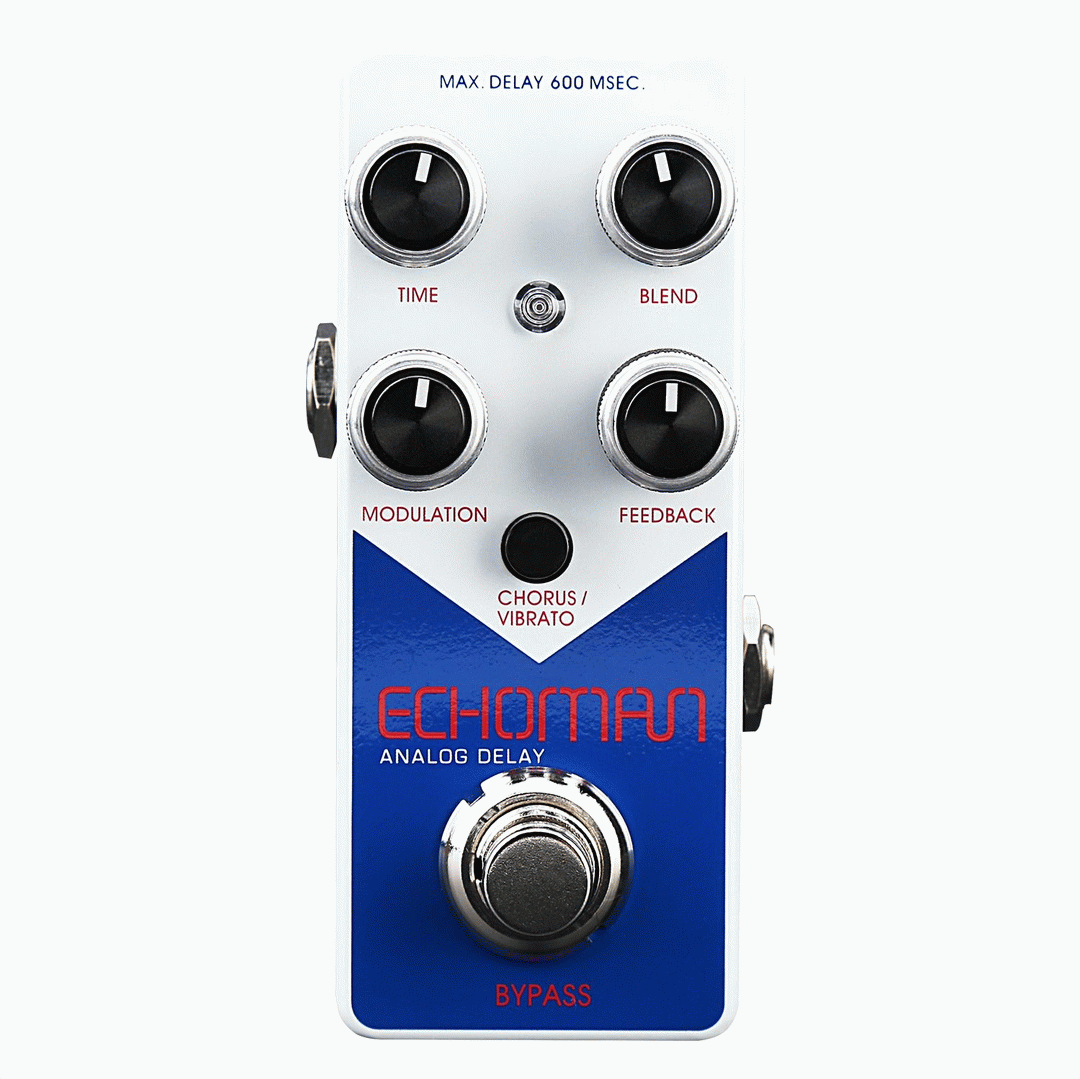

Xvive V21 Echoman Delay Pedal

$169.95
$189.00 $169.95 Save $19.05
Sale Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

Similar options in stock now

Make 4 interest-free payments of $42.49 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU 352563AUSTRALIS

XVIVE V21 ECHOMAN DELAY PEDAL The Xvive V21 Echoman Vintage Pure Analog Delay guitar effect pedal. Echoman uses two Xvive BBD3005 chips, classical analog circuit sound, 600 ms delay time, with Chorus/Vibrato modulation effect, to add a deeper atmosphere to your sound. With FEEDBACK , Time Knob , more effect can be brought out. XVIVE Audio proprietary chip design ( MN3005 BBD). Up to 600 msec of delay time with no aliasing distortion. Buffered bypass with a 900K input impedance Wide bandwidth - good high frequency response even at long delay settings. Feedback control allows self-oscillation if desired. Blend control allows adjusting the output from dry signal only to delayed signal only. High-tech filtering and noise reduction circuitry an excellent signal to noise ratio, even at long delay settings. TRUE BYPASS Footswitch: Push down the footswitch to switch between effects and bypass status. ON/OFF LED: V21 On and Off. Blue LED Modulation is Chorus, Red is Vibrato. DC IN Power Jack: For power supply, use a 9-volt DC regulated AC adapter(plug polarity is positive on the barrel and negative in the center) INPUT Jack:1/4‚¬ï¿½ mono audio jack. For connect ing guitar. OUTPUT Jack: 1/4‚¬ï¿½ mono audio jack, outputs the signal. Blend Knob: Mix the input level and delay level Feedback Knob: Adjust the feedback of delay effects. Time Knob: Adjust the delay time. Max is 600ms. Modulation: Adjust the Chorus or Vibrato effect. Chorus/Vibrato: Switch to Chorus or Vibrato.
