1-In-1-Out Cobranet Wall Panel NWALL1.1 Peavey - Media Matrix

4.6 · 870+ Google reviews
  • 1-In-1-Out Cobranet Wall Panel NWALL1.1 Peavey - Media Matrix
  • 1-In-1-Out Cobranet Wall Panel NWALL1.1 Peavey - Media Matrix — view 3
1 2
$1,659.49
$1,659.49
Sale Sold out
Taxes included. Shipping calculated at checkout.

Authorised-dealer price · Price-match promise

Make 4 interest-free payments of $414.88 with Afterpay
or pay nothing today with Zip
Sold out online — but we can often order it in. Call 03 4151 5751 or send us a message and we’ll track one down or suggest the closest in-stock alternative.
Free shipping over $150 Returns & warranty Authorised Peavey dealer Warranty included Finance available Price-match promise Talk to our experts

PV-NWALL1.1

View full details

The full story

Description

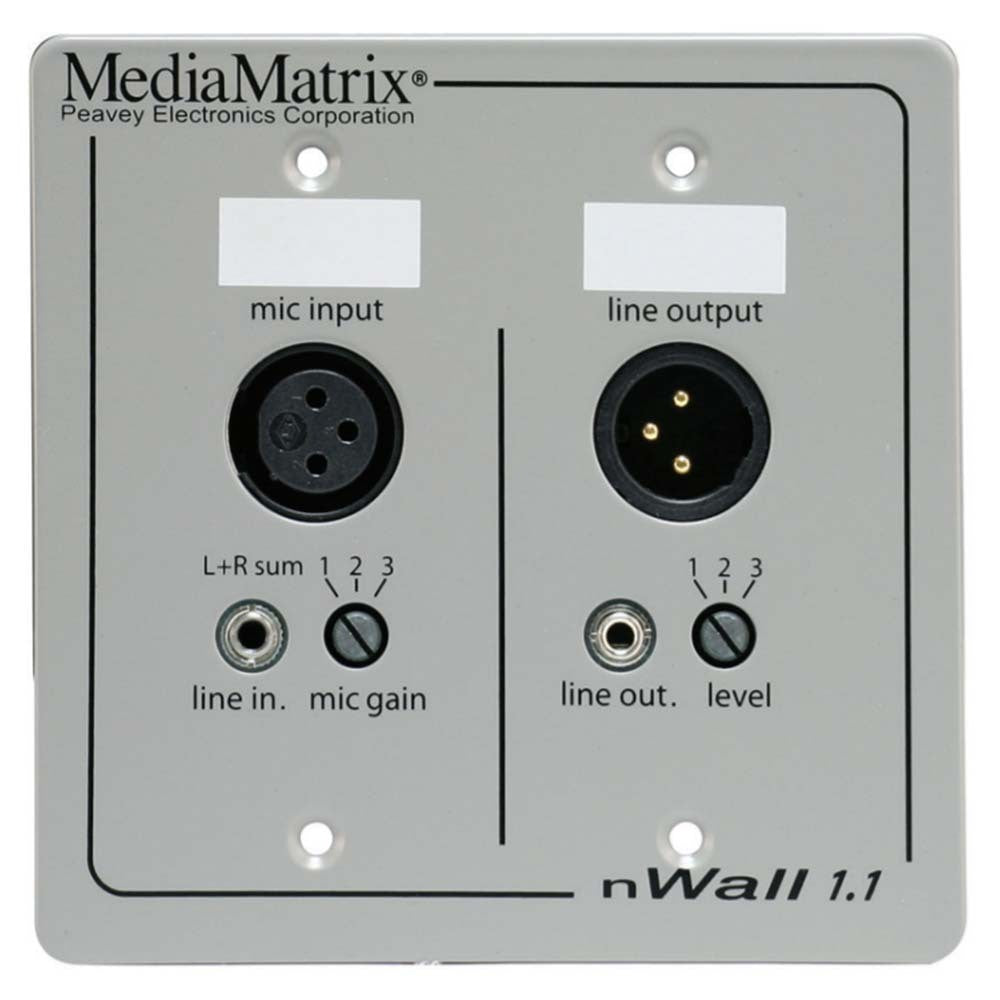

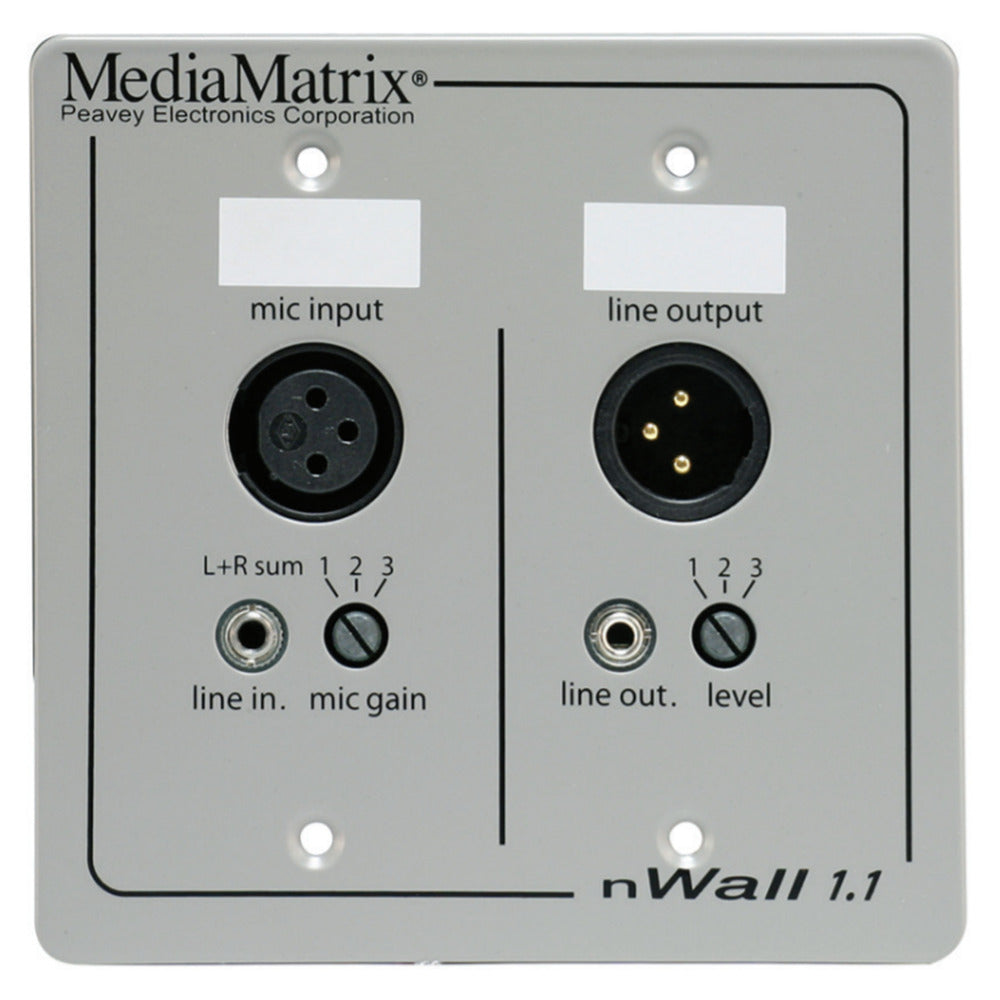

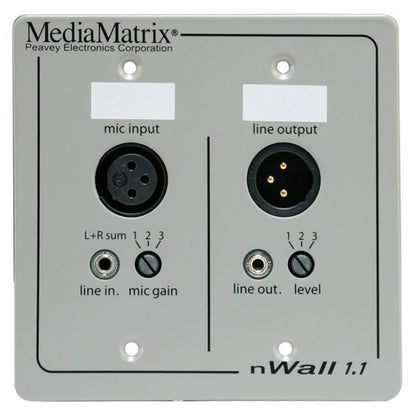

THIS PRODUCT IS FOR ONLINE ORDER ONLY. Peavey nWall 1.1The MediaMatrix nWall 1.1 is a 2 gang North American NEMA mount CobraNet interface panel with one female XLR and one mini-jack input It also has one male XLR and one mini-jack output. For the inputs the stereo mini-jack has the left and right channels summed together and placed on the fi rst CobraNet subchannel while the XLR is placed on the second CobraNet subchannel of the transmitting bundle. On the output side the stereo mini-jack provides audio from the first CobraNet subchannel and the XLR provides audio from the second CobraNet subchannel of the received bundle. The CobraNet audio is transmitted across the local area switched network using standard Ethernet cable.The input side of the front panel features an XLR connector with 12V phantom power thus accommodating both dynamic and condenser microphones. The input sensitivity can be selected by using the rotary switch to provide the requisite gain for low output microphones high output microphones or line level devices. There is also a 1/8 (3.5mm) TRS mini-jack which accepts a nominal -8dBu signal. The output side of the front panel features an XLR connector for balanced output. The output level can be adjusted using the rotary switch. There is also a 1/8 (3.5mm) TRS mini-jack.

The practical bits

Details & dimensions

Brand
Peavey
Type
Signal Processors
