Behringer

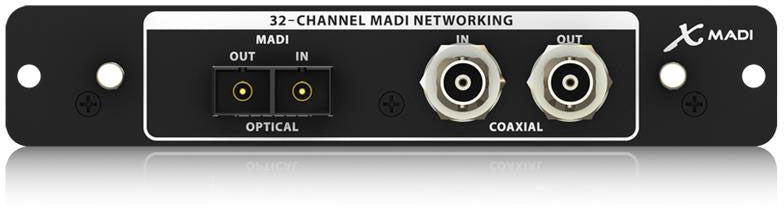

Behringer X-MADI Expansion Card

$859.00
$859.00
Sold out

Includes GST

Sold out right now. We may be able to order it in. Call or message us and we’ll check with the supplier.
Call 03 4151 5751 Send us a message

In stock now in PA & Pro Audio

Make 4 interest-free payments of $214.75 with Afterpay
or pay nothing today with Zip

Delivery & collection

Standard shipping Free*

Ships once we’ve sourced it. We’ll confirm exact timing with you first.

Conditions apply.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751Send us a message
View full details

Description

SKU 450430AUSTRALIS

BEHRINGER X-MADI EXPANSION CARD The X32 s expansion slot provides flexible and expandable connectivity for many different applications. The X-MADI Expansion Card can easily be installed in place of the X-USB card that is included with the X32 . The 32-channel interface brings even more I/O options to the X32 by instantly enabling it for MADI networking. The MADI or AES10 protocol is quickly becoming an industry standard in many broadcast applications. The X32 ships with the X-USB card in the expansion slot, but by installing the X-MADI card, you will be ready to integrate with MADI networks, with 32-channels of bidirectional audio. X-MADI provides Optical duplex SC-plugs (IEC874-19) to connect with fibre optic MADI devices, with multimode fibre optic cable lengths of up to 2 km supported. Dual BNC terminals are also provided for transmission via standard 75-Ohm coaxial cable of up to 100 m length. MADI is found in professional recording and broadcast studios around the world. The X-MADI card is the perfect solution for integrating the X32 into current installations using the MADI protocol. 32-channel, bi-directional audio interface via MADI (AES10) Optical duplex SC-plugs (IEC874-19) to connect with fibre optic MADI devices Multimode fibre optic cable length of up to 2 km supported Dual BNC terminals for transmission via standard 75-Ohm coaxial cable of up to 100 m length BNC connectivity can be used as a redundancy network with fibre optic installations Console allows selecting a block of 32 out of up to 64 MADI channels Both MADI formats 56-channel (AES10-1991) and 64-channel (AES10-2003) supported Designed and engineered in Germany
