Eikon EKJMA Handheld Wireless Microphone System UHF 512-541.7 MHz

Name: Eikon EKJMA Handheld Wireless Microphone System UHF 512-541.7 MHz
Brand: Eikon
Price: 150.95 AUD
Availability: InStock

$150.95

~~$189.00~~ $150.95 Save $38.05

Sale

Includes GST

In stock at our warehouse. Order now and it ships in 1–3 business days with tracking.

Not on the Footscray shop floor. We’ll bring it in for you to collect in 1–3 business days.

Make 4 interest-free payments of $37.74 with Afterpay

or pay nothing today with Zip

Delivery & collection

Standard shipping Free

Dispatched in 1–3 business days with tracking, then 4–9 business days depending on location.

Express shipping $15

1–3 business days depending on location.

Flat rate Australia-wide. Choose Express at checkout.

Click & Collect Free

From our Footscray showroom

It’s not on the shop floor yet, so we’ll bring it in and email you when it’s ready (usually 1–3 business days).

4.6 from 911+ Google reviews of Scarlett Music (opens in a new tab)
Returns & warranty
Price-match promise
Authorised Eikon dealer

Not sure it’s the right one? Talk to a player.

Call 03 4151 5751 Send us a message

View full details

Description

SKU EKJMA

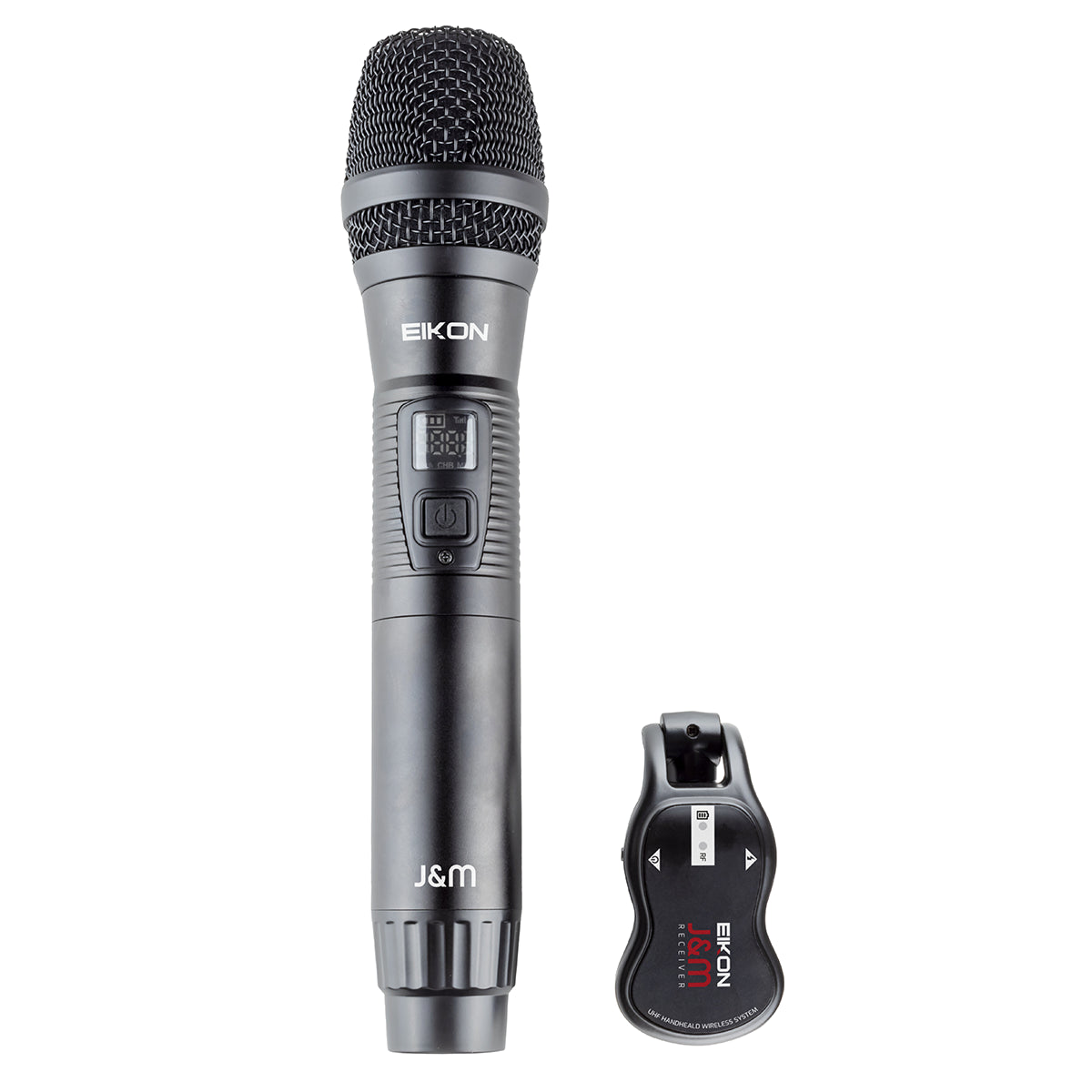

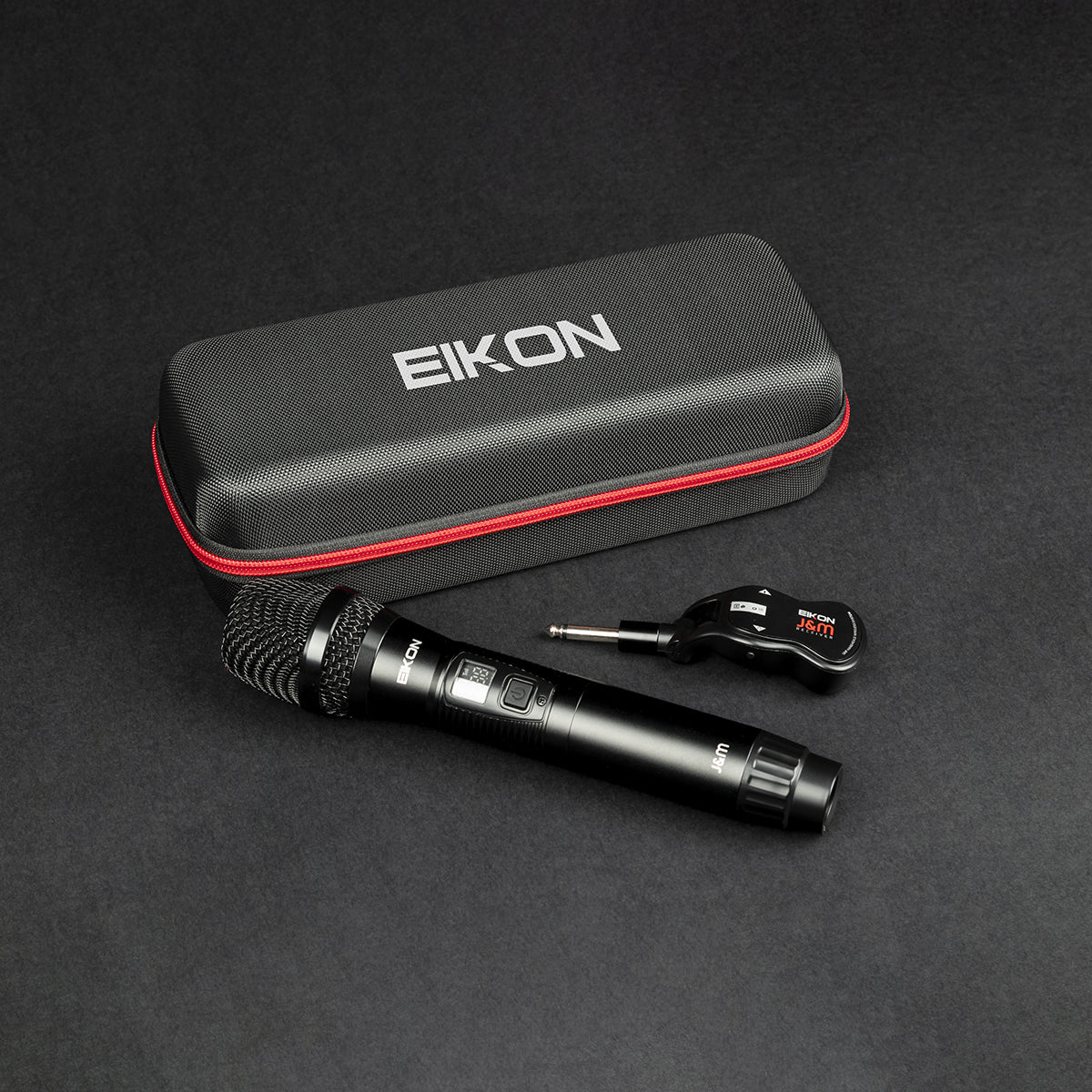

EKJMA UHF 512 – 541.7 MHZ HANDHELD WIRELESS SYSTEM The EKJ&M is a UHF quartz locked controlled Wireless Microphone System providing a reliable and high quality signal transmission. EKJ&M features 3 units: EKJ&M Handheld transmitter, EKJ&M compact “connector sized” receiver and USB to USB-C charging cable. 50 channels frequencies are available, allowing the possibility to use the apparatus with other wireless equipment. UHF 512 – 541,7 MHz frequency band Quartz locked modulation mode Up to 30 meters range Built in 3.7V/500mA lithium battery 5V USB charging cable included Up to 5 hours autonomy Up to 6 systems usable in the same location Download manual HERE TECHNICAL SPECIFICATIONS EKJ&JA - UHF PLL 50 Channel Transmitter RF Channels 50 frequency presets RF Frequency Band UHF: 512 - 541.7 MHz RF Frequency Stability ± 0.002% RF Oscillation Mode Quartz locked RF Modulation Type Wideband FM Stereo RF Output Power 10mW Sub-harmonic < 40 dB Operating current 130 mA Operating Time 5 to 8 hours Operating Power Supply 3.7 V / 500mA - built-in Lithium battery Charging mode USB charging 5V - type C connector Charging time 5 hours Weight 0.30 Kg EKJ&JA - UHF PLL 16 Channel Receiver RF Channels 50 frequency presets RF Frequency Band UHF: 512 - 541.7 MHz RF Frequency Stability ± 0.005% RF Oscillation Mode Quartz locked RF Modulation Type Wideband FM Stereo RF Receiving Sensitivity < -98 dBm RF Receiving range 15 to 30 metres depending on used band conditions Audio Dynamic Range 106 dBm THD Distortion < 0.5% S/N Ratio > 102dBA Audio output connector 6.3 mm Mono Jack Output Power Max (continuous) 400 mW Operating current 80 mA Operating Time 5 hours Operating Power Supply 3.7 V / 500mA - built-in Lithium battery Charging mode USB charging 5V - type C connector Charging time 3 hours Weight 0.05 Kg
